Description

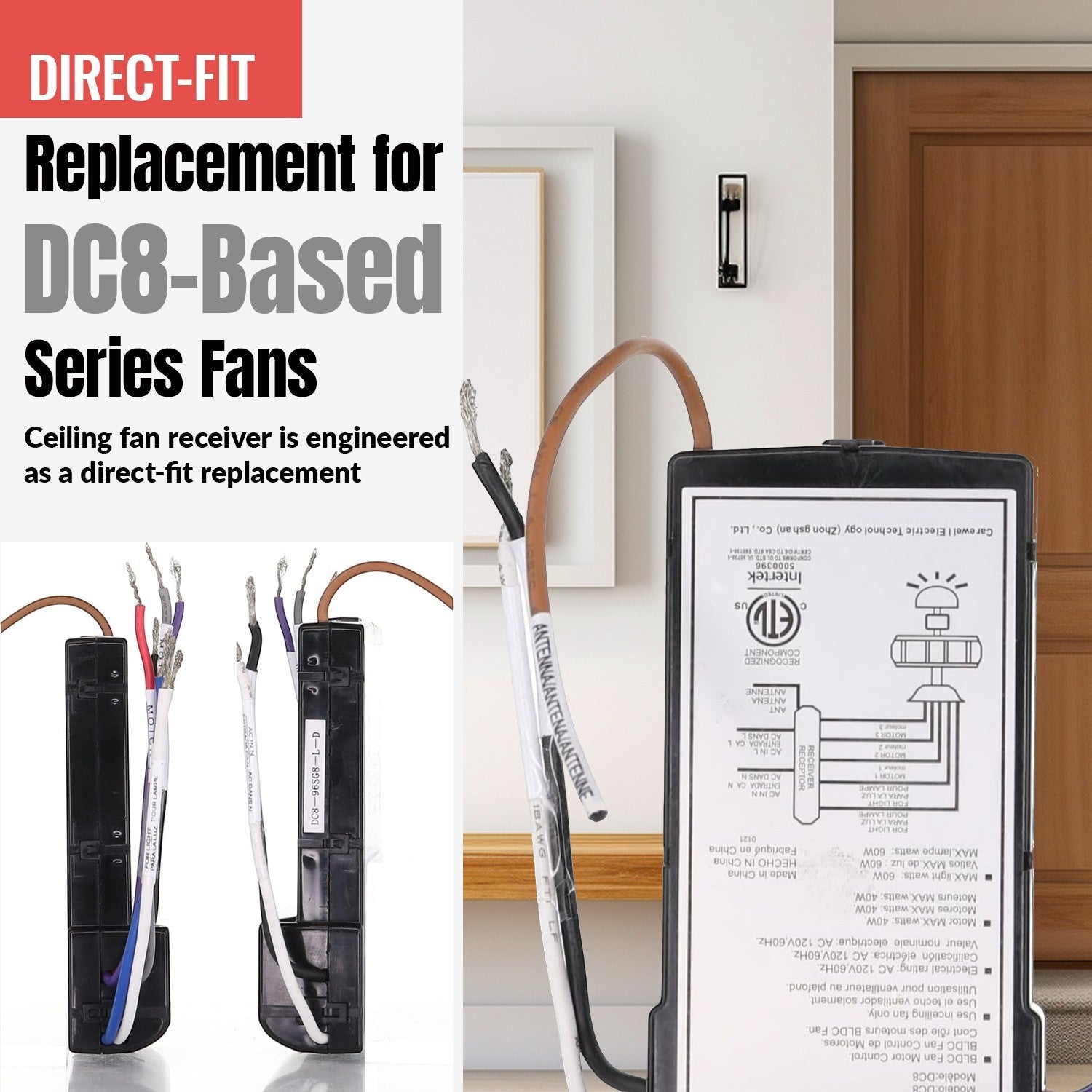

The Anderic DC1-DC8-KIT is a substitute for the Monte Carlo R8Y7RC04-CF Visual Comfort ceiling fan remote (7rc04-cf100001). It includes the Anderic DC1 remote and the DC8 receiver.
Specifications
- Shipped kit: Anderic DC1-DC8-KIT (DC1 remote and DC8 receiver)
- Radio frequency (RF): 2.4 GHz
- Batteries: 2 AAA (not included)
- Operating range: approximately 10 meters
Good to Know
- It comes with its own receiver and remote; the existing receiver and remote are not used.

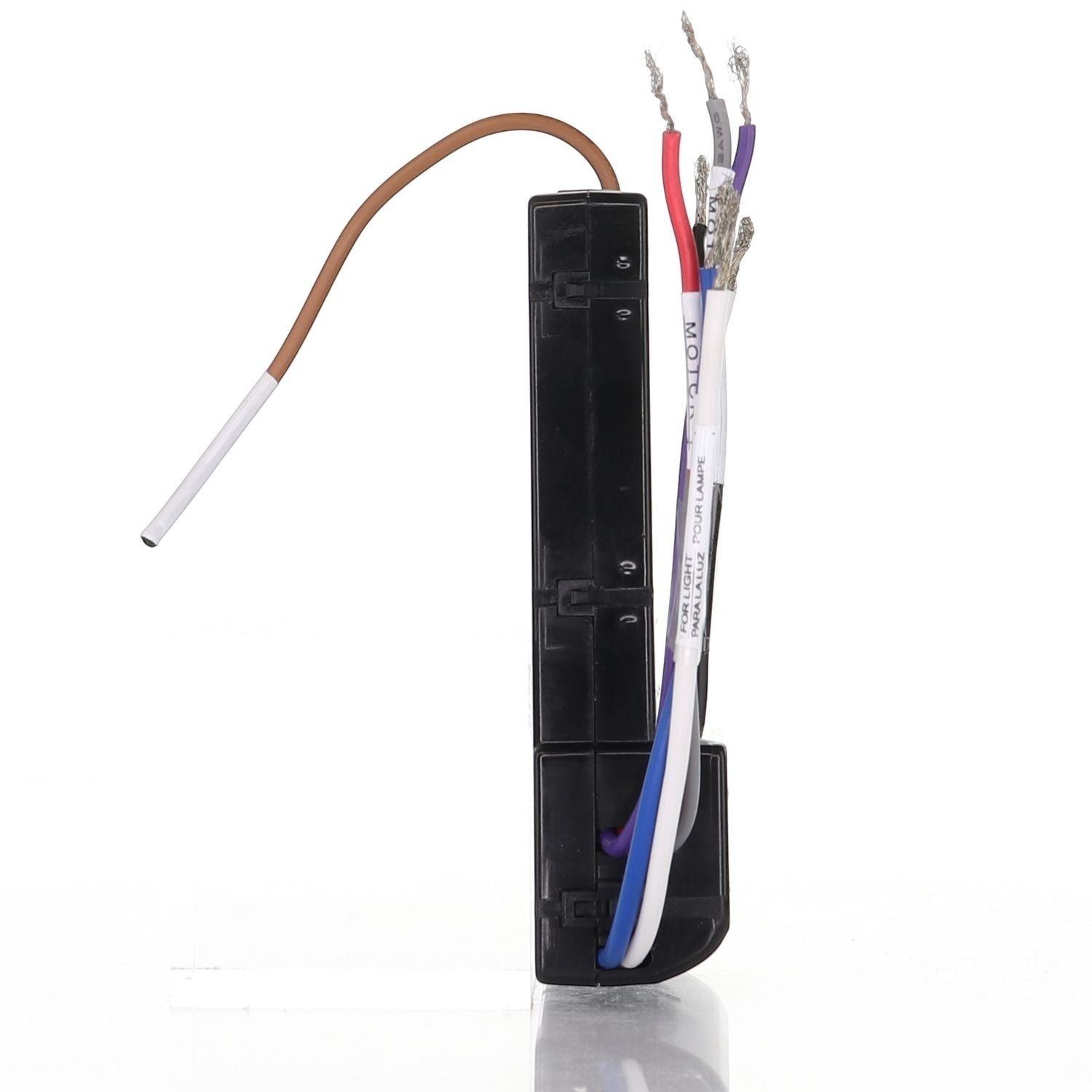

- The receiver is wired into the fan; switch off the power at the circuit breaker before installing it.
- Do not use a wall dimmer switch to control the fan speed.

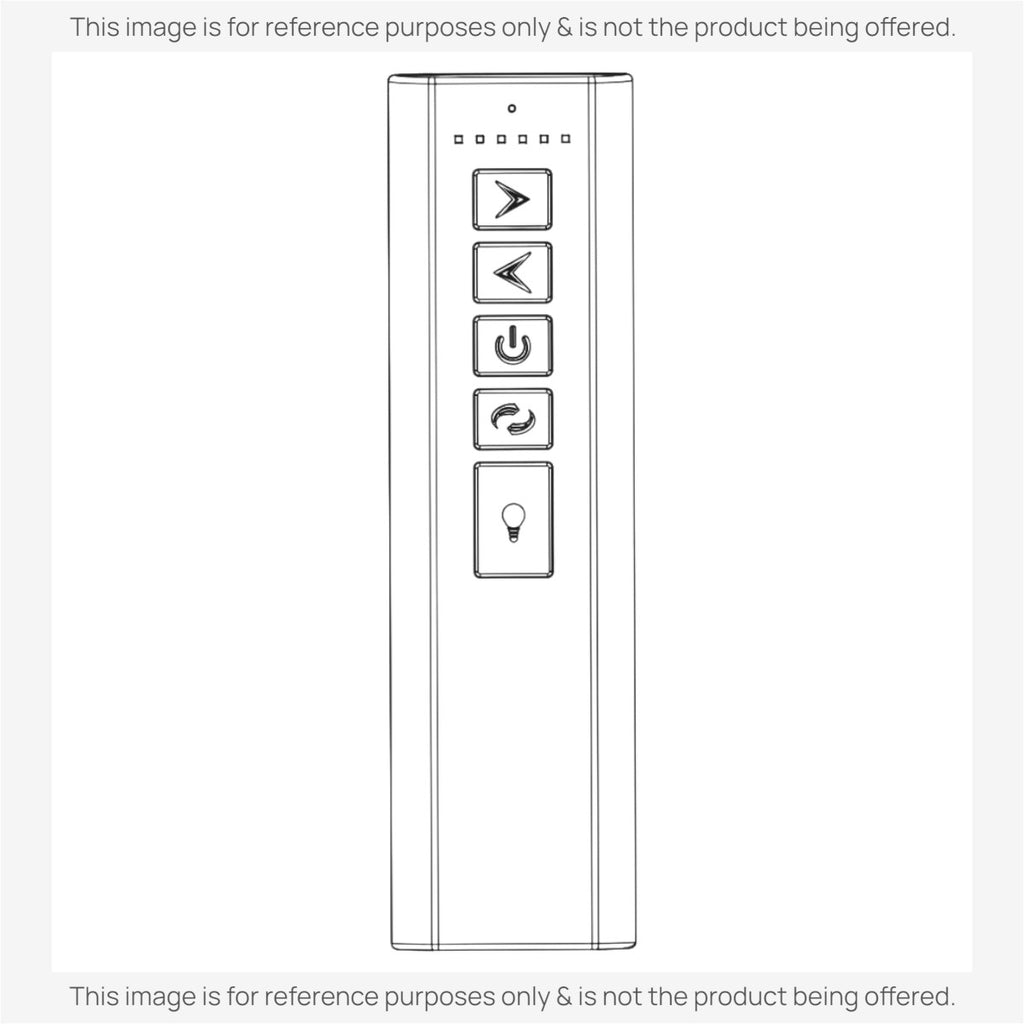

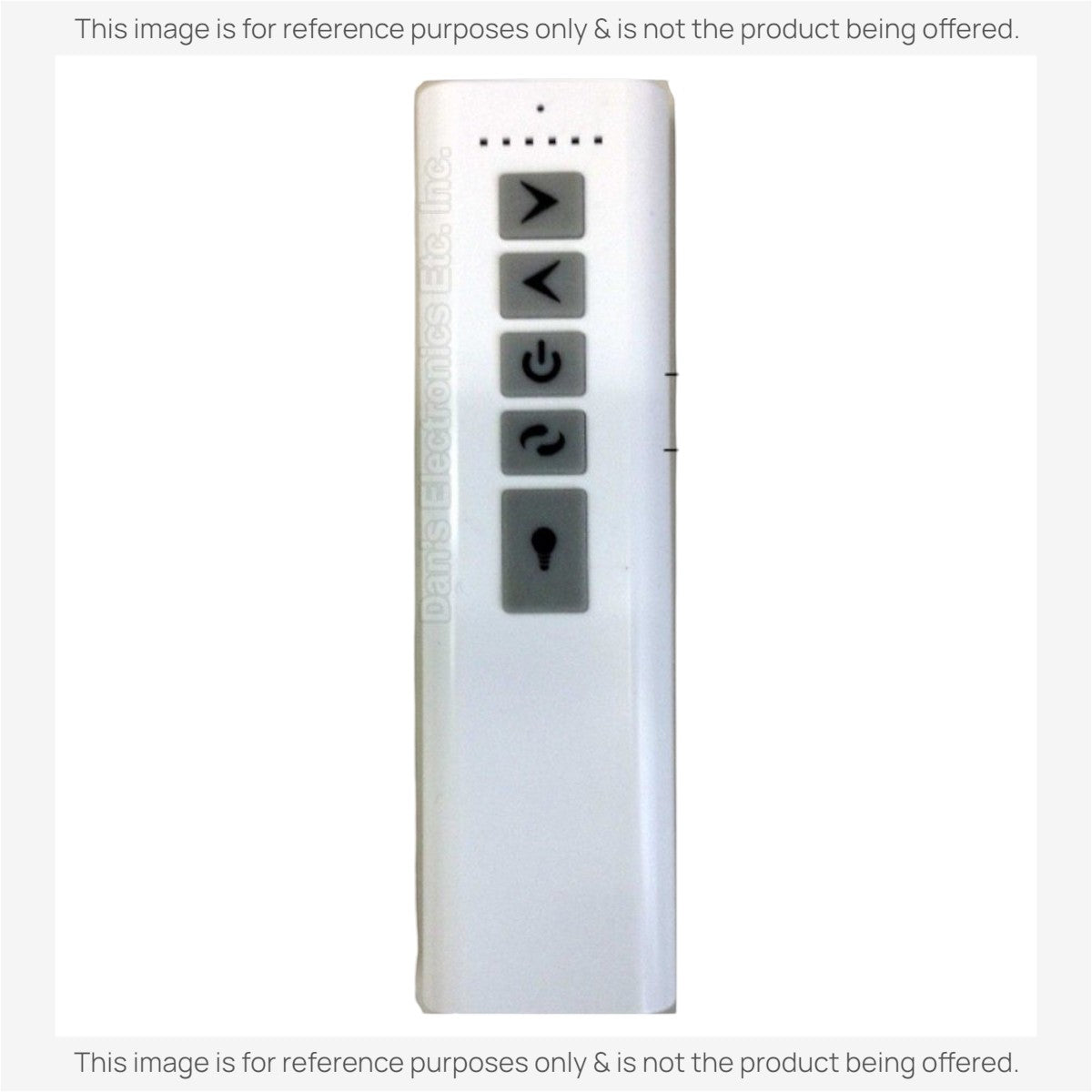

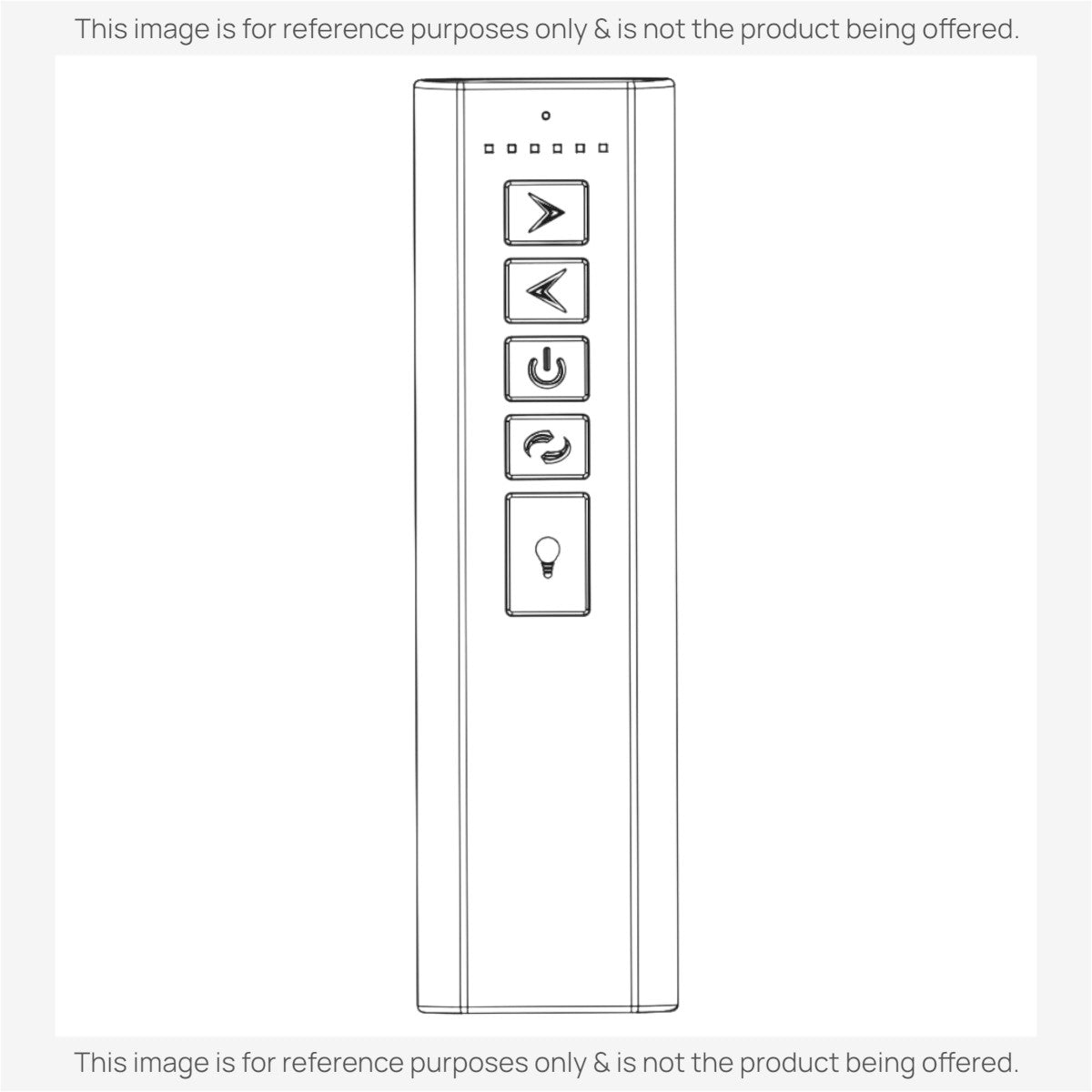

- Key names, layout and the look of the case may differ from the original. Compare your original's buttons before ordering.
- The remote is preset with light dimming enabled. Use the DIM setting to dim, or the ON setting for on/off only.
- We may ship the newest model of this kit.

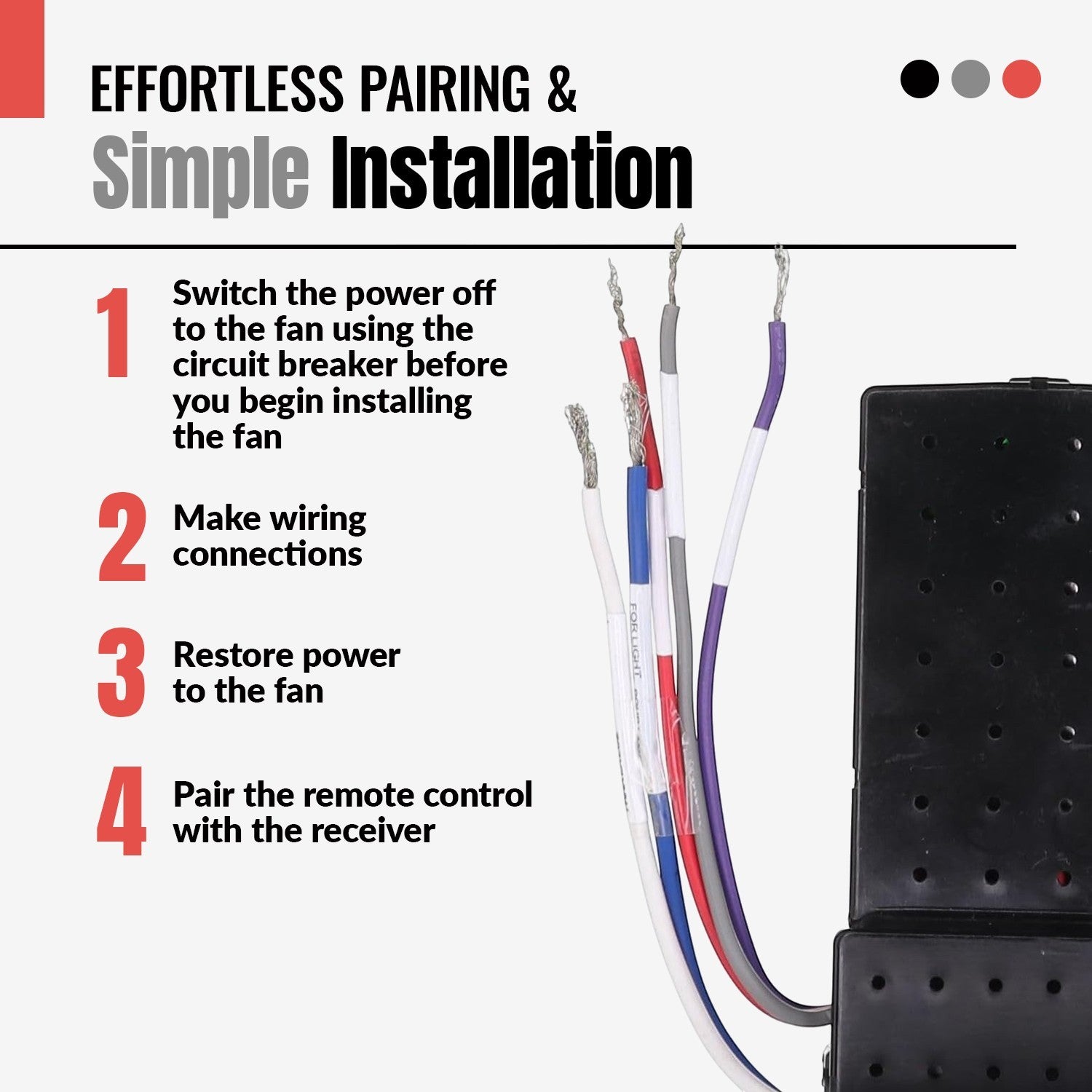

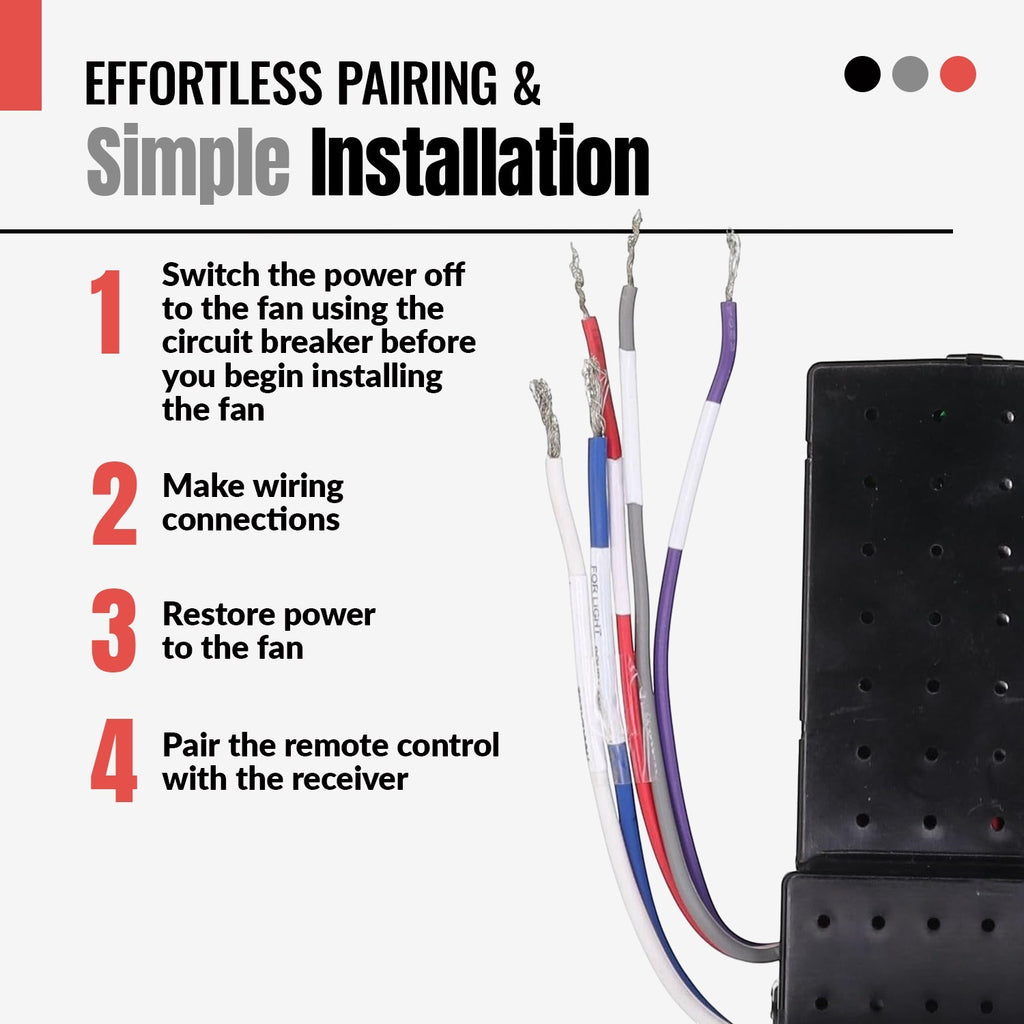

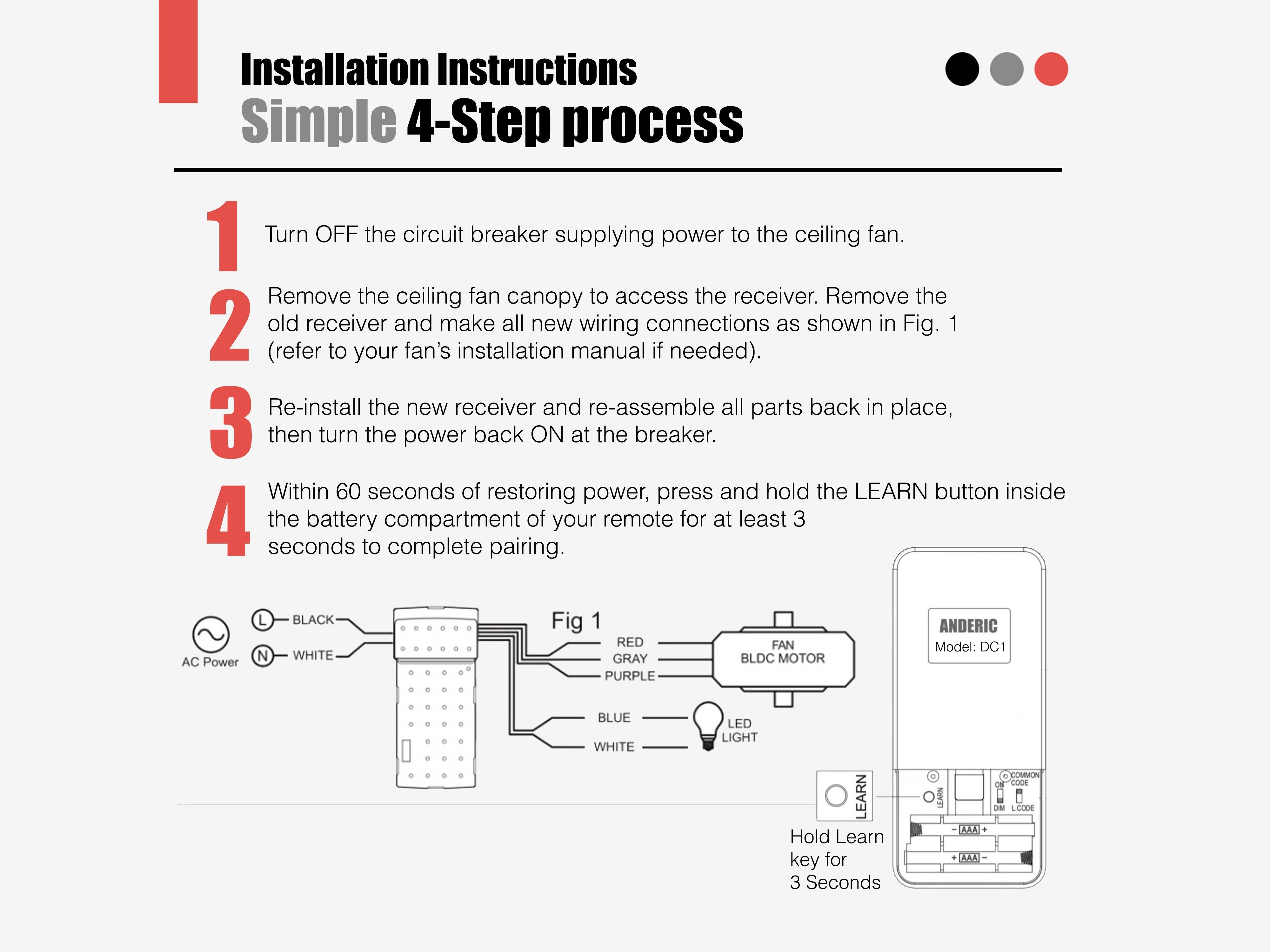

Setup / Pairing
- Remove the battery cover on the DC1 remote and install 2 AAA batteries (not included), matching the polarity, then replace the cover.
- Switch the power off at the circuit breaker before installing the receiver. Make the wiring connections as shown in the User Guide, then restore power.

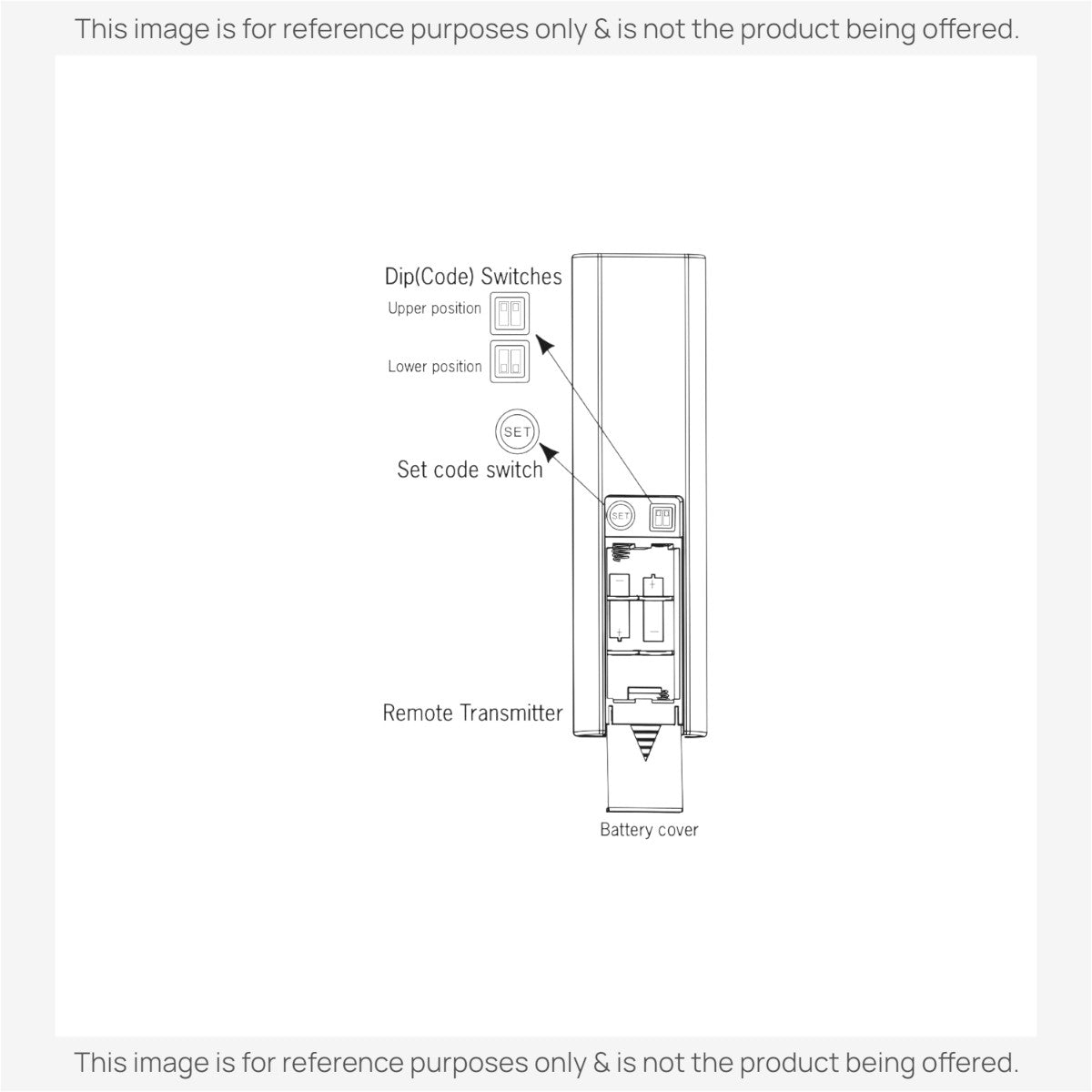

- Choose the mode with the dip (code) switch on the DC1 remote. Universal mode: set it to the upper COMMON CODE position; the remote is then ready to use. Other remotes in the same setting can also control the fan.
- Learning mode (to pair one specific remote): set the switch to the lower L. CODE position. Turn the fan power off at the circuit breaker for at least 10 seconds, then turn it back on.
- Within 60 seconds of restoring power, press and hold LEARN for at least 3 seconds. After power is restored, do not press any other button before LEARN, or pairing will fail.
- If the fan has a light, it blinks twice when pairing is complete. For a fan without a light, test with the remote. If it does not pair, turn the power off and repeat. A fan can be controlled by up to two remotes. See the User Guide for full instructions.

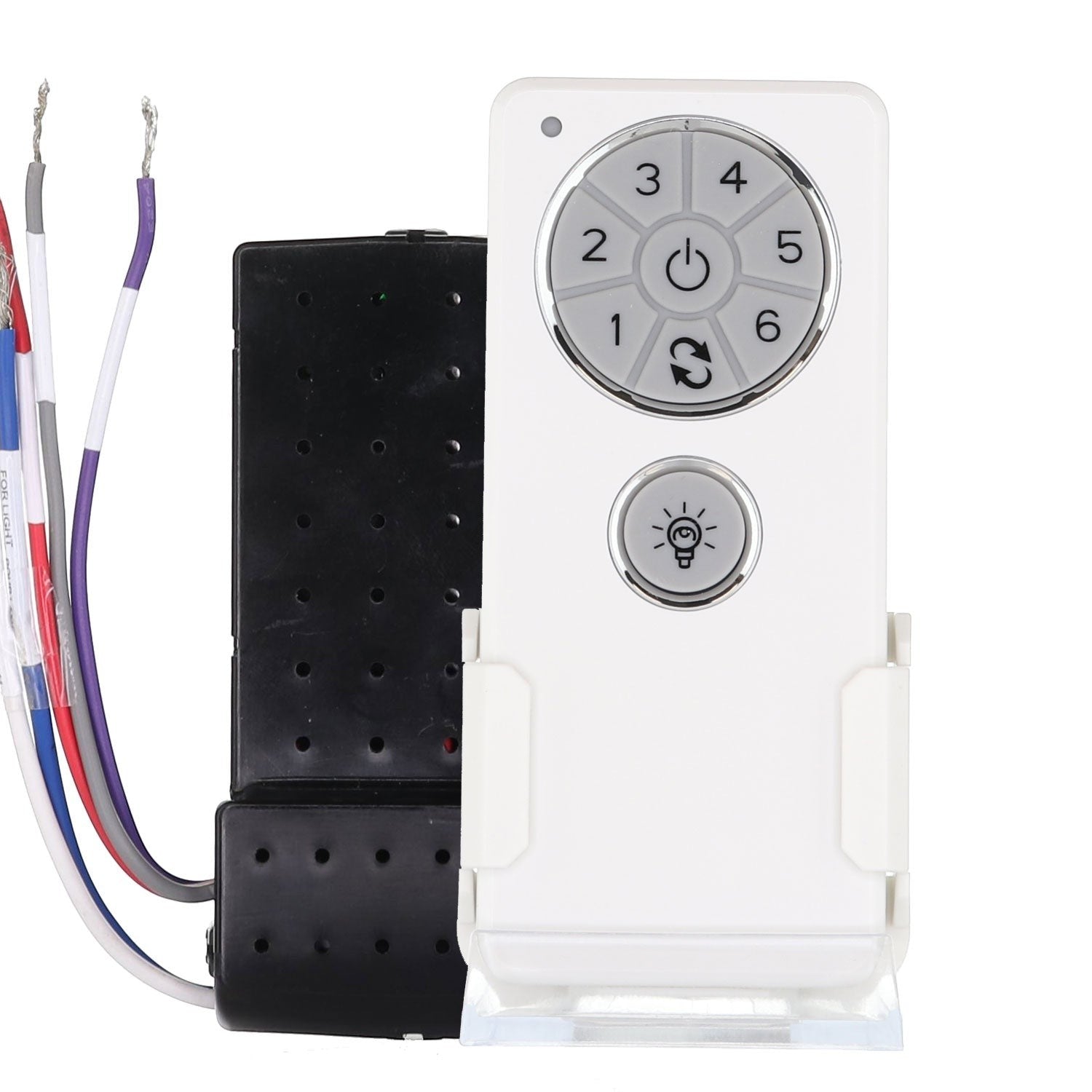

What's in the Box
- 1 Anderic DC1 remote

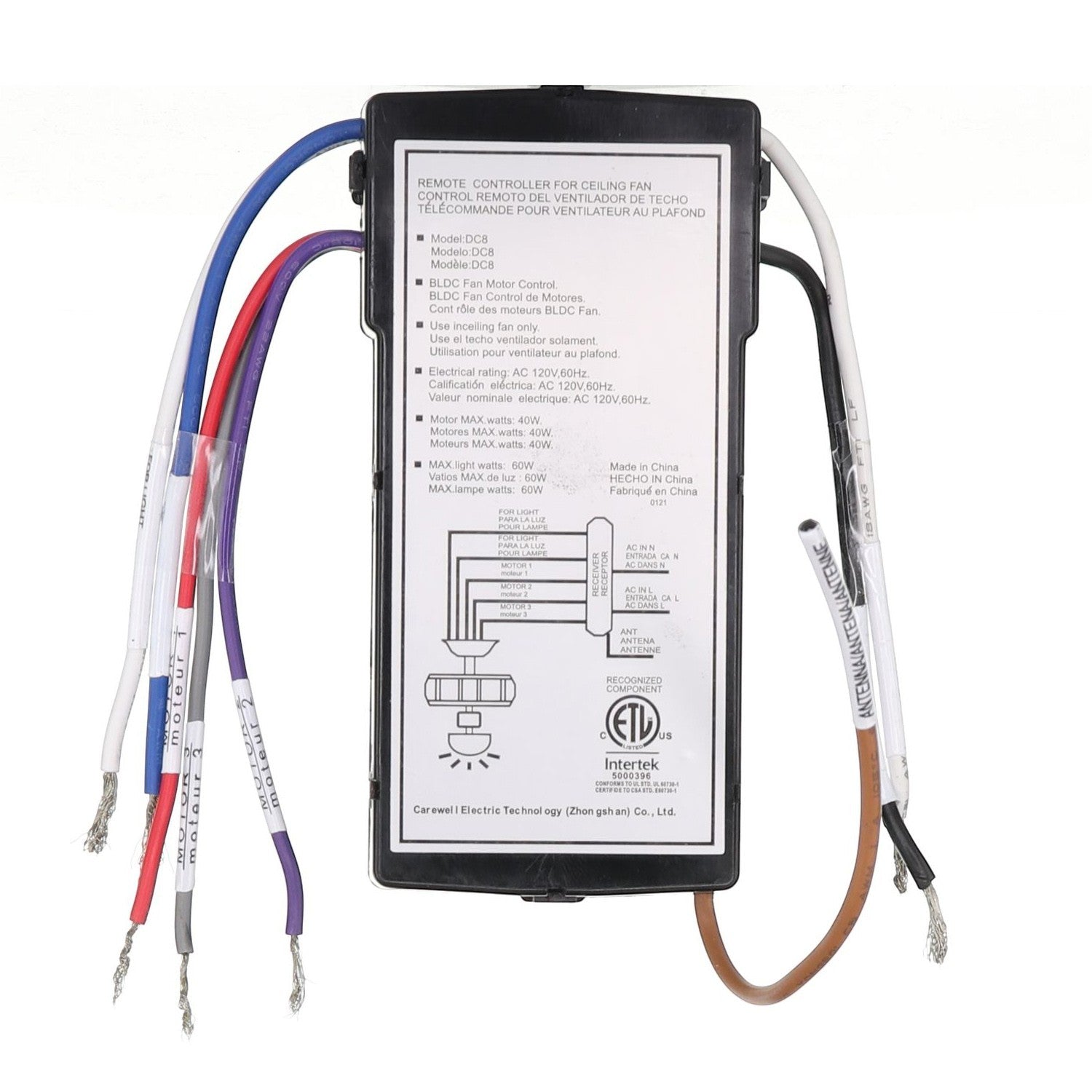

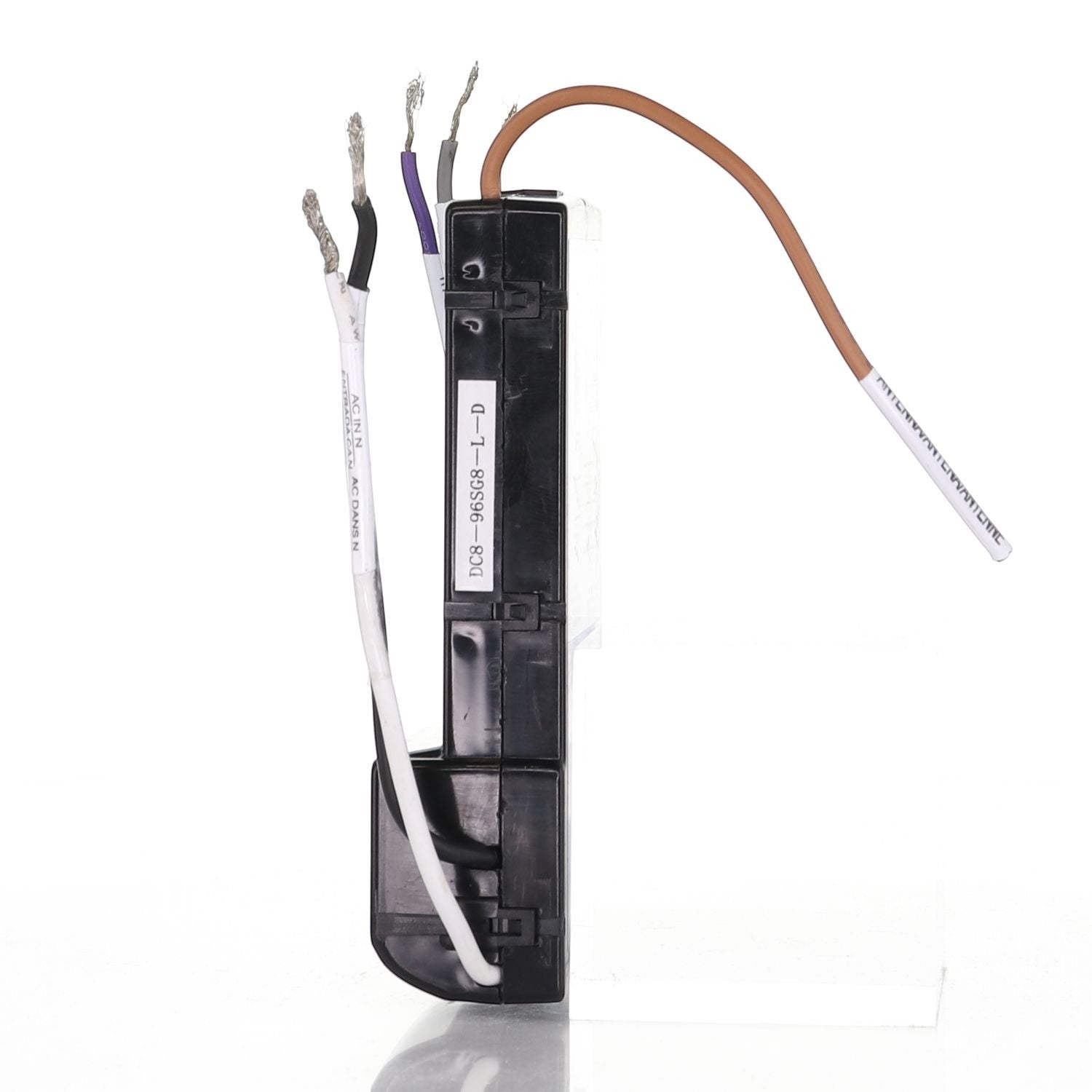

- 1 Anderic DC8 receiver
- Wall mount cradle
- Batteries not included
Compatible Models
- Monte Carlo R8Y7RC04-CF
- 7rc04-cf100001
- Monte Carlo fans that used the R8Y7RC04-CF remote, including 3MNLR56 and 3MNLR72, and others.
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare the photos and button layout to your current remote. If you are not sure, contact us with your model or a photo of the original remote.
Specifications
Product help/documentation (if applicable): User Guide
Features:
- The Anderic DC1-DC8-KIT is a substitute for the Monte Carlo R8Y7RC04-CF Visual Comfort ceiling fan remote (7rc04-cf100001). It includes the DC1 remote and the DC8 receiver.
- With the breaker off, wire in the DC8 receiver, restore power, then set the DC1 dip switch to COMMON CODE, or to L. CODE and hold LEARN for at least 3 seconds within 60 seconds. Step-by-step instructions are in the description.
- Radio frequency (RF), 2.4 GHz. Six fan speeds, fan off, forward/reverse and light dimming. The kit uses its own receiver and remote; the original receiver and remote are not used.
- Key names, layout and the look of the case may differ from the original. Compare your original's buttons before ordering. Do not use a wall dimmer switch to control the fan speed.
- Takes 2 AAA batteries, not included.
Part/Model Number: 7rc04cf100001 / 7rc04-cf100001 Visual Comfort
Power Information: 2 AAA Required, Not Included
FCC ID (if applicable): 7rc04-cf100001 2.4 Ghz
Frequency (if applicable): 2410.0 MHz
Compatible with models (if applicable): R8Y7RC04-CF, 7rc04-cf100001, 3MNLR56, 3MNLR72
