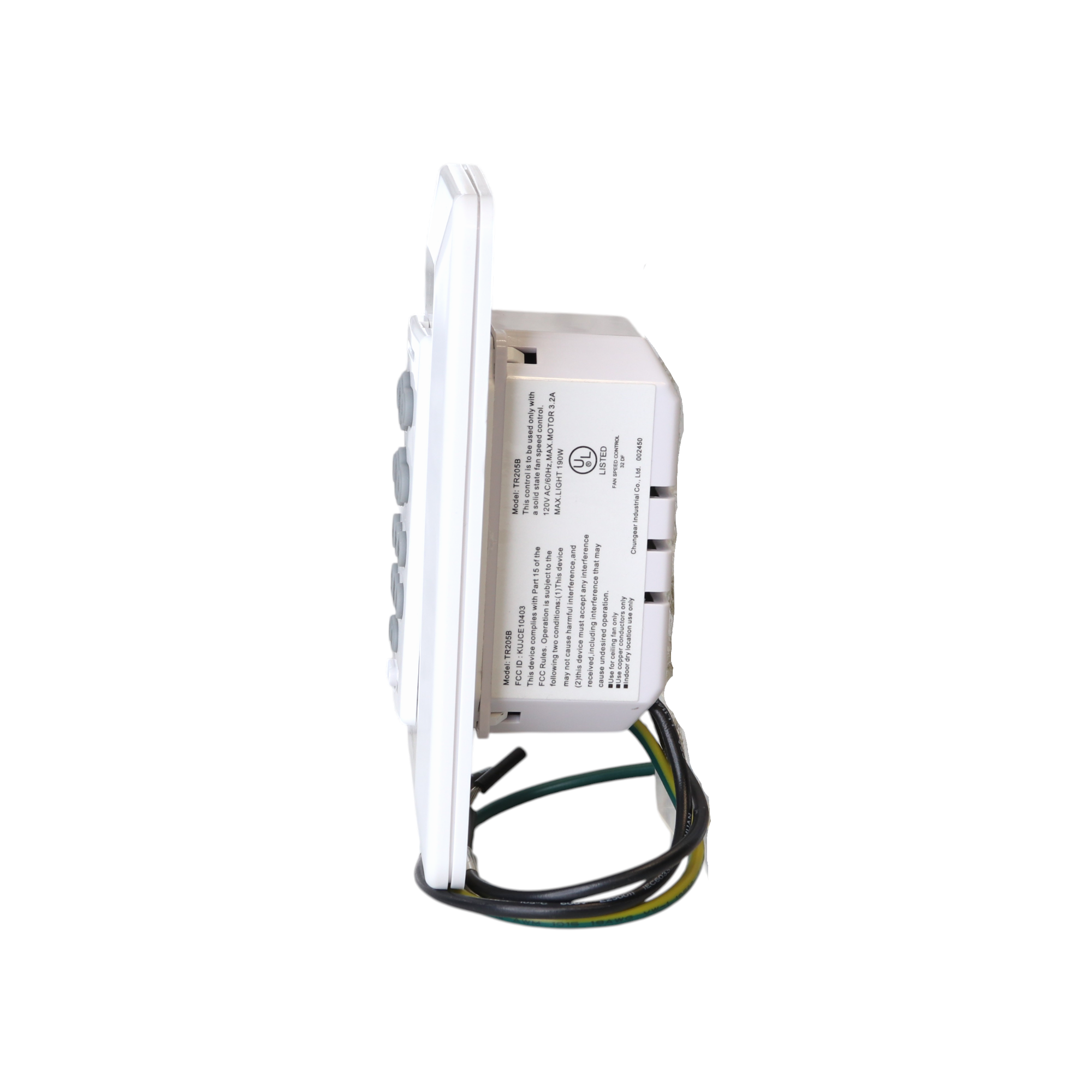

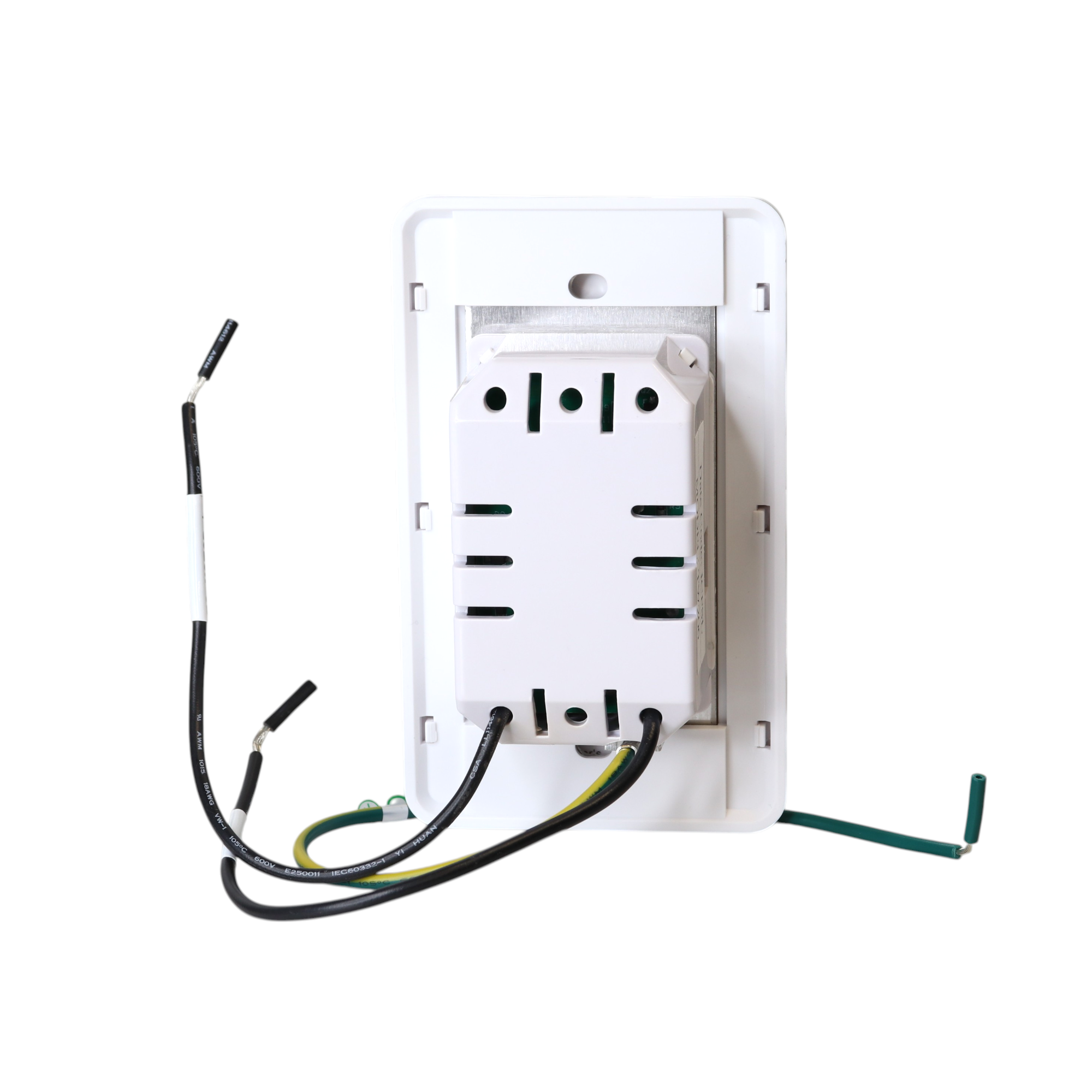

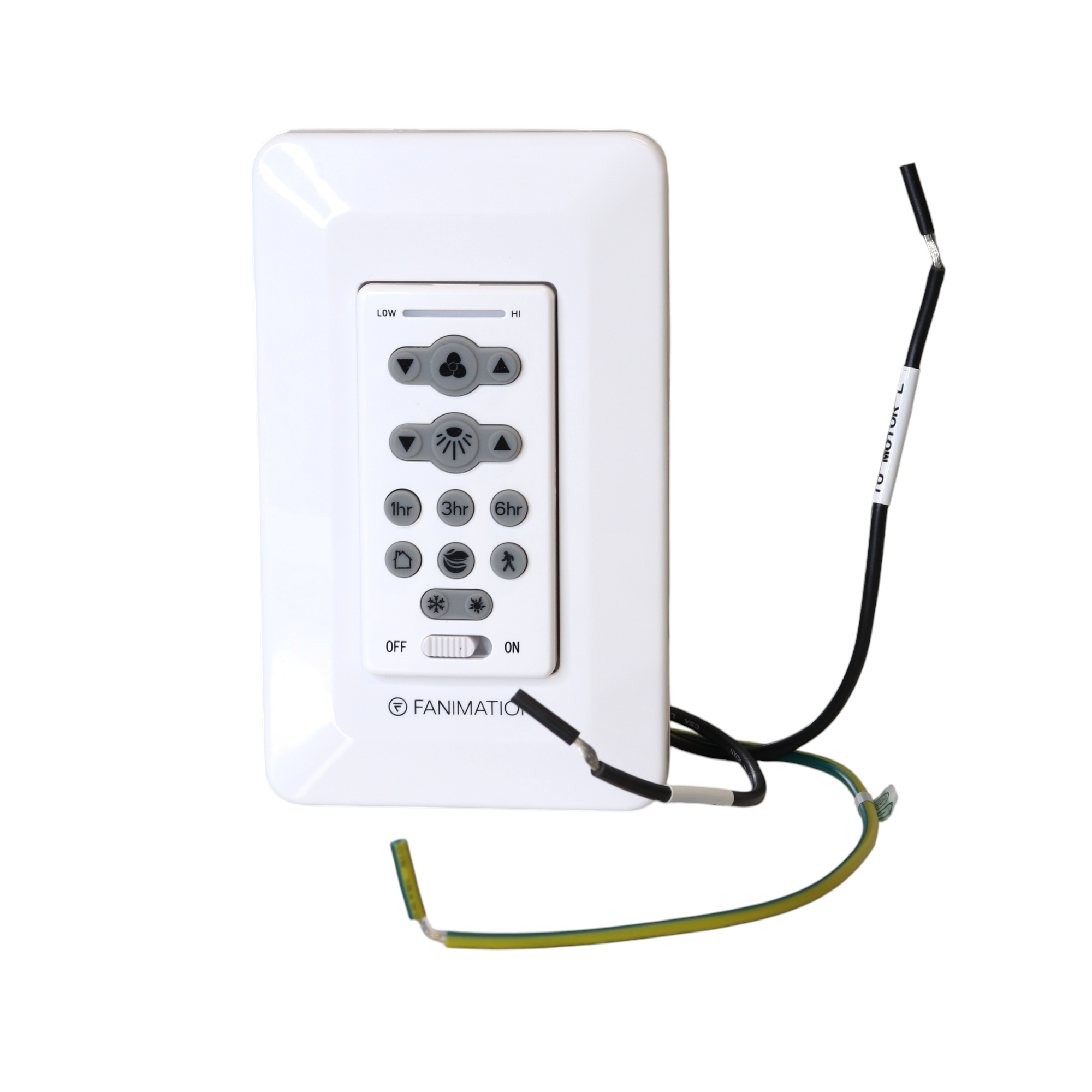

The TW206 is a wall-mounted remote control designed for DC ceiling fans, offering variable-speed control and reverse functionality. This model provides a compatible replacement for fan remotes, allowing you to adjust fan performance from any room. The TW206 features straightforward operation with intuitive controls for speed adjustment and directional reversal. Installation is simple, making it an effective replacement or upgrade option for compatible DC fan systems. Learns to existing compatible receivers via the SET button.
Setup / Pairing
- With power off, install and wire the wall control as shown in the instruction sheet, then restore power.
- Do not press any other button before SET, or the learn procedure will fail. If you do, turn the power off and on and start over.
- Within 30 seconds of restoring power, press and hold the SET button for 1–5 seconds.
- The fan makes one musical sound and starts running to begin the setting process. Do not press any buttons while it programs.
- The fan runs in both directions for about 5 minutes, then stops and makes two musical sounds when setup is complete.
If you change the blades later, turn power off, change the blades, turn power on, and repeat the SET process. For this fan, the D/O dip switch should be in the D position to allow light dimming.
