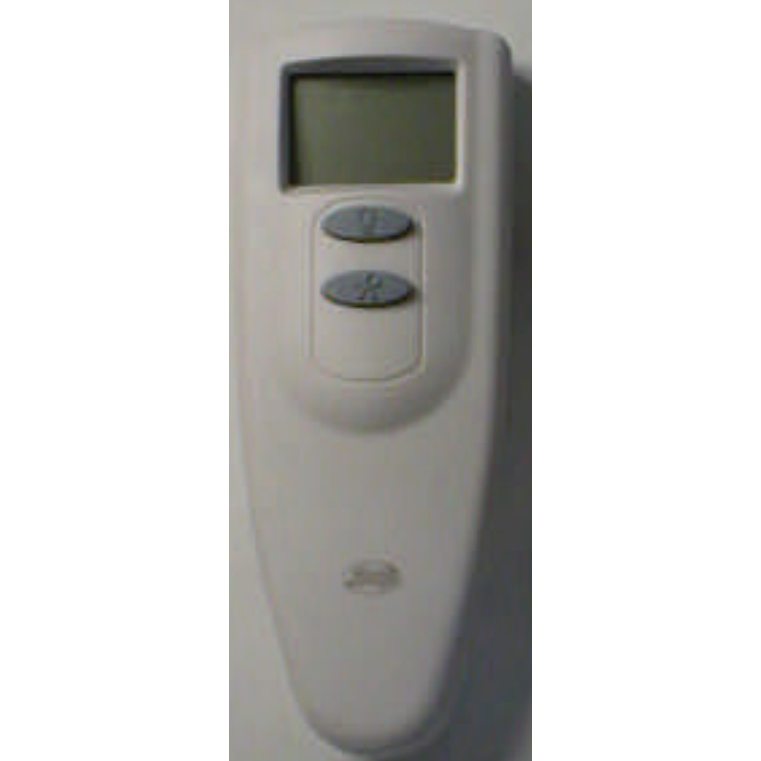

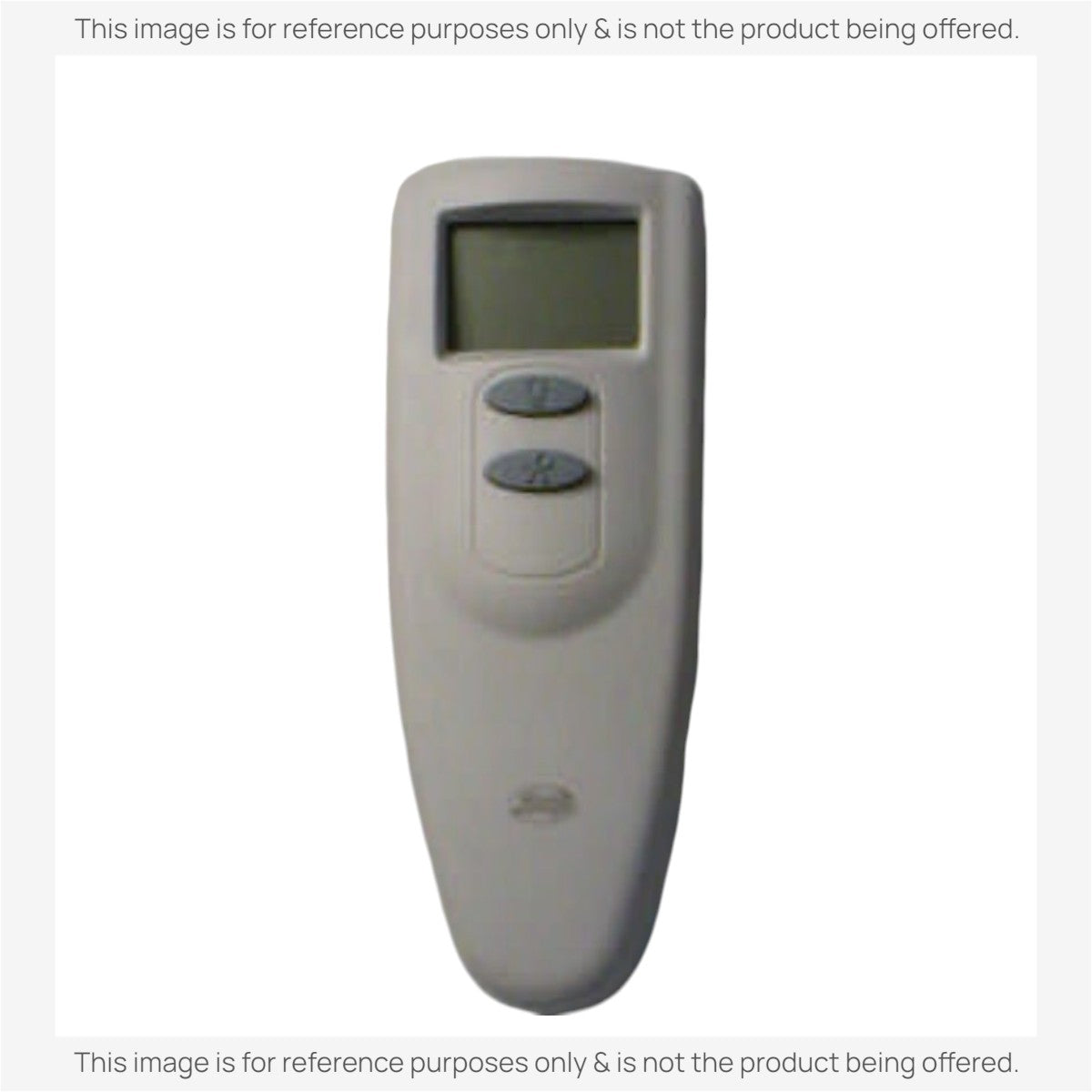

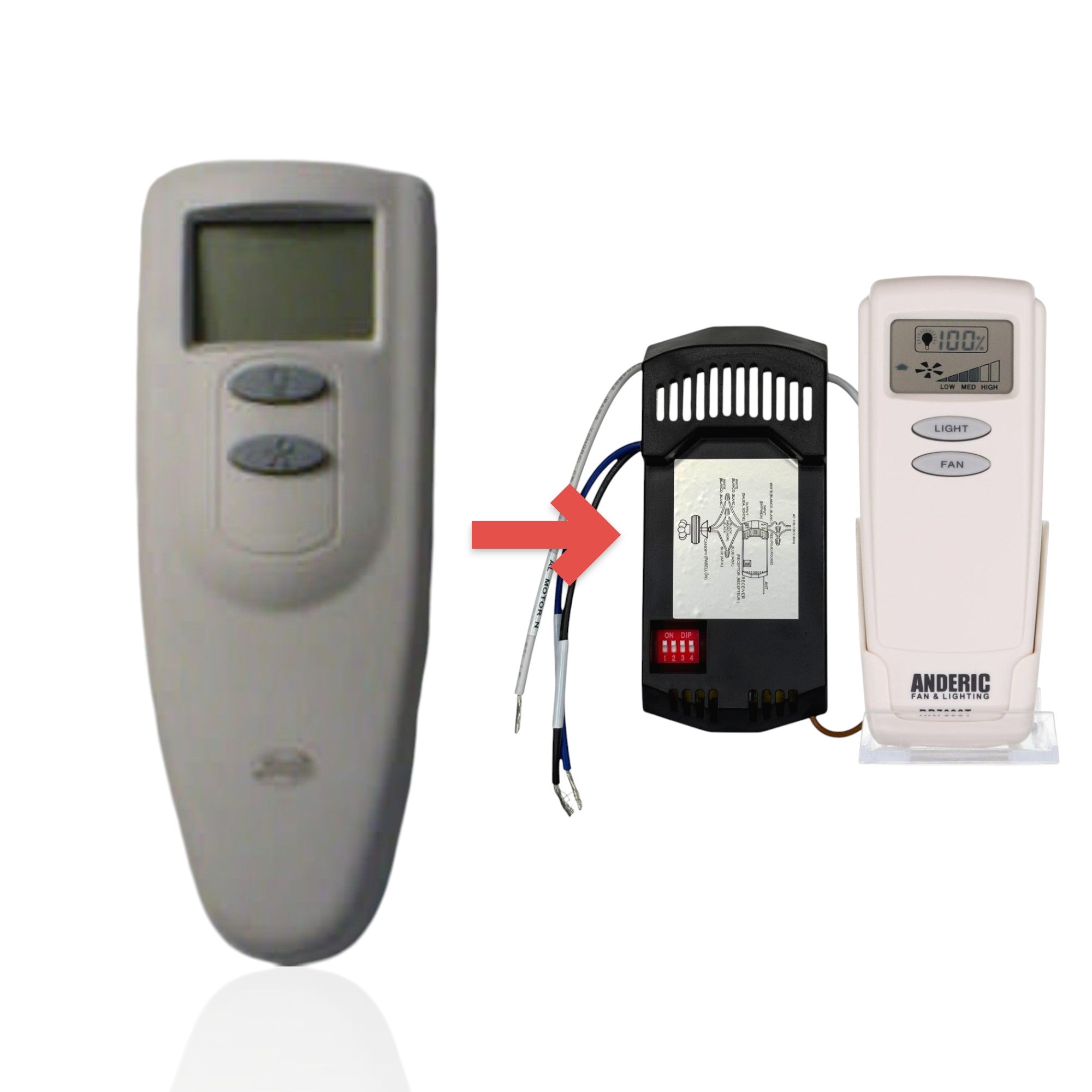

The Anderic RR7099TKIT is a substitute for the Hunter 84592 / IN2TX16 remote. It is a ceiling fan remote and receiver kit with a wall mount.
Specifications
- Shipped remote: Anderic RR7099TKIT
- Radio frequency (RF): 303.9 MHz (shipped RR7099T + UC7067FCRX kit; 350 MHz belongs to the replaced IN2TX16 remote)
- Battery: 1 9-Volt (not included)
Good to Know
- Does not work with fans that use the KUJCE9201 system
- The receiver must be installed in the fan
- Key names and layout may differ from the original. Compare your original's buttons before ordering.
- This is a kit that includes a receiver; the Hunter 84592 / IN2TX16 it replaces is a remote only.
Setup / Pairing
Complete all receiver DIP, wiring, and canopy work with the circuit breaker off; reassemble, then restore power to test. If you later need to access the receiver again, isolate power at the breaker first.
Turn off power at the circuit breaker before opening the canopy or touching or adjusting the receiver. Match or record receiver switches with power off; close covers, then restore power to test. If you are not opening the receiver, you may try remote-only code patterns.
- Turn the power to the fan off at the circuit breaker. Install the receiver in the fan canopy following the wiring instructions included with the kit, then restore power.
- Remove the remote's battery cover: push firmly below the arrow and slide it off. Set the code switches before installing the battery, because on some models the battery covers the switch panel.
- With a small screwdriver or pen tip, slide the 4 code (dip) switches up or down to a pattern of your choice. The factory setting is all up.
- Set the 4 code switches on the fan's receiver to exactly the same pattern as the remote. The remote and receiver only work together when the patterns match.
- Insert the battery (not included), matching the polarity marks, and replace the battery cover.
- Test: press a fan speed key and the light key. The fan and light respond when the patterns match.
- If you cannot reach the receiver: set the remote's switches to one of the 16 patterns, press a key to test, and if the fan does not respond, move to the next pattern. Repeat until the fan responds.
- If the fan or light turns on and off by itself, another remote is interfering: set a new matching pattern on both the remote and the receiver.
What's in the Box

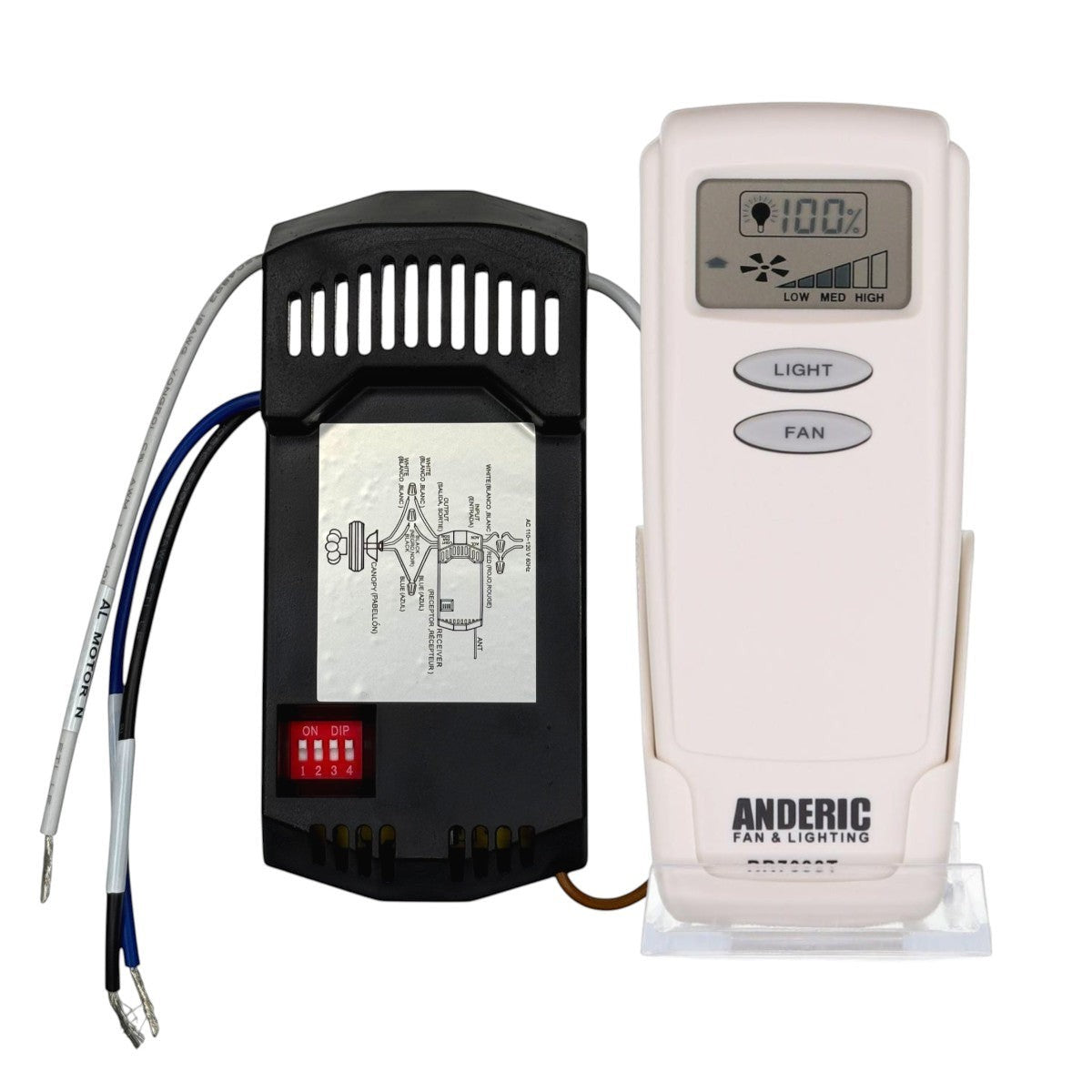

- 1 Anderic RR7099T remote and 1 UC7067FCRX receiver (RR7099TKIT)
- Wall mount bracket
- Battery not included
Compatible Models
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
