Description
The Anderic FAN2R-RR7078TR-KIT is a substitute for the Hunter 85112-04 receiver. It is a Hunter-style FAN2R receiver with RR7078TR remote kit.
Specifications
- Kit: Anderic FAN2R-RR7078TR-KIT
- Radio frequency (RF): 304 MHz
- Battery: 1 9-Volt (not included)
Good to Know
- 304 MHz only; requires receiver install
- Key names and layout may differ from the original. Compare your original's buttons before ordering.
Setup / Pairing
With the breaker OFF, install the receiver and set or record its code switches; set the remote to the identical pattern, close all covers and the canopy, then restore power and test.
- Turn the power to the fan off at the circuit breaker. Install the receiver in the fan canopy following the wiring instructions included with the kit, then restore power.

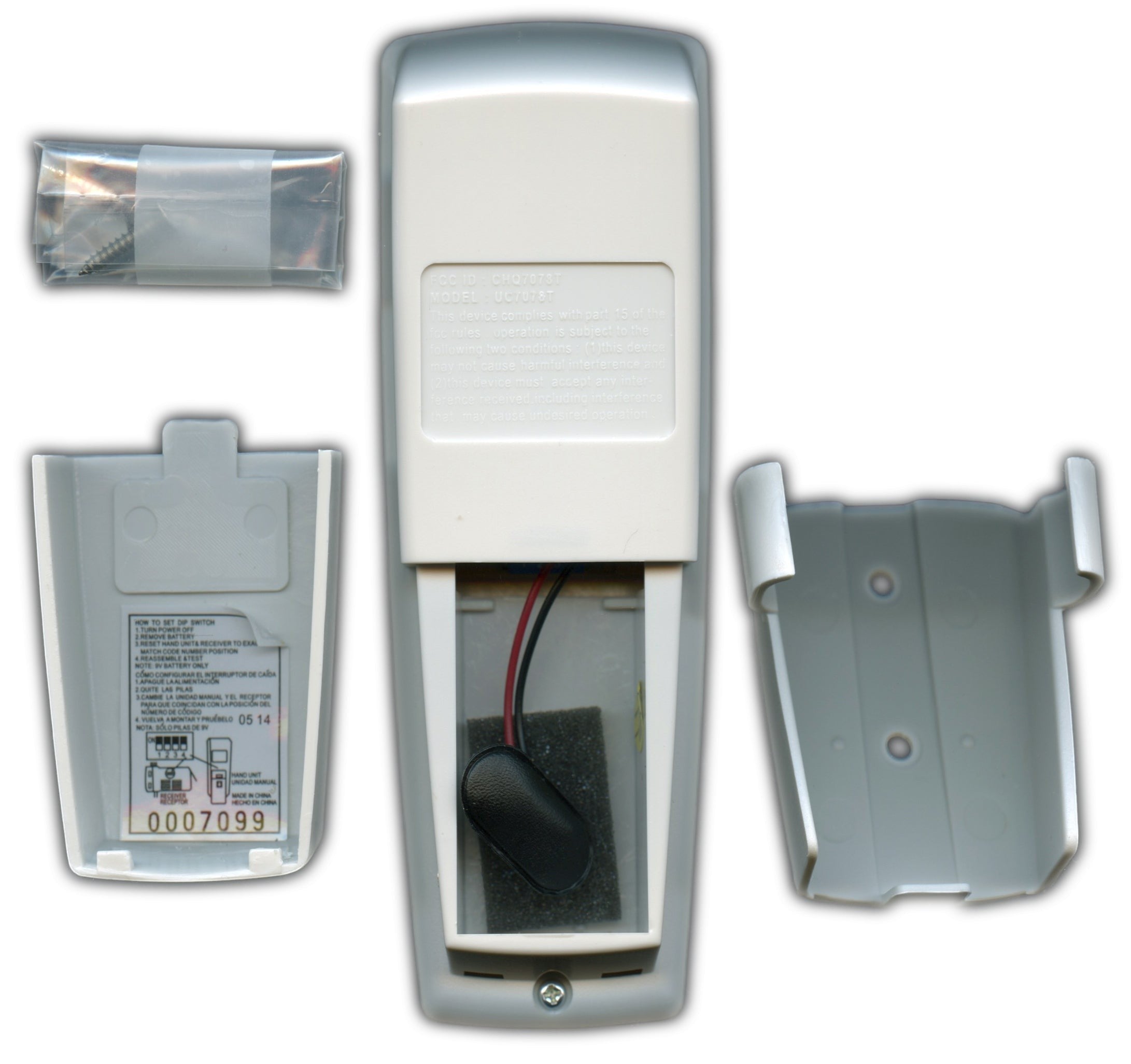

- Remove the remote's battery cover: push firmly below the arrow and slide it off. Set the code switches before installing the battery, because on some models the battery covers the switch panel.
- With a small screwdriver or pen tip, slide the 4 code (dip) switches up or down to a pattern of your choice. The factory setting is all up.
- Set the 4 code switches on the fan's receiver to exactly the same pattern as the remote. The remote and receiver only work together when the patterns match.
- Insert the battery (not included), matching the polarity marks, and replace the battery cover.
- Test: press a fan speed key and the light key. The fan and light respond when the patterns match.
- If you cannot reach the receiver: set the remote's switches to one of the 16 patterns, press a key to test, and if the fan does not respond, move to the next pattern. Repeat until the fan responds.
- If the fan or light turns on and off by itself, another remote is interfering: set a new matching pattern on both the remote and the receiver.
What's in the Box
- 1 remote and 1 receiver
- Battery not included
Compatible Models
- Hunter 85112-04
- Also works with: 23529-300
Before ordering, check the model or part number printed on your old remote (usually on the back or inside the battery compartment) and compare it to this list.
Specifications
Product help/documentation (if applicable): User Guide
Features:
- Replaces your Hunter 85112-04 with a Hunter-style FAN2R receiver with RR7078TR remote kit. Fits units such as 23529-300.
- To set it up in place of your Hunter 85112-04, remove the remote's battery cover and set the code (dip) switches up or down in a pattern of your choice. The factory setting is all up, then set the receiver's code switches to the same pattern, and replace the battery cover.

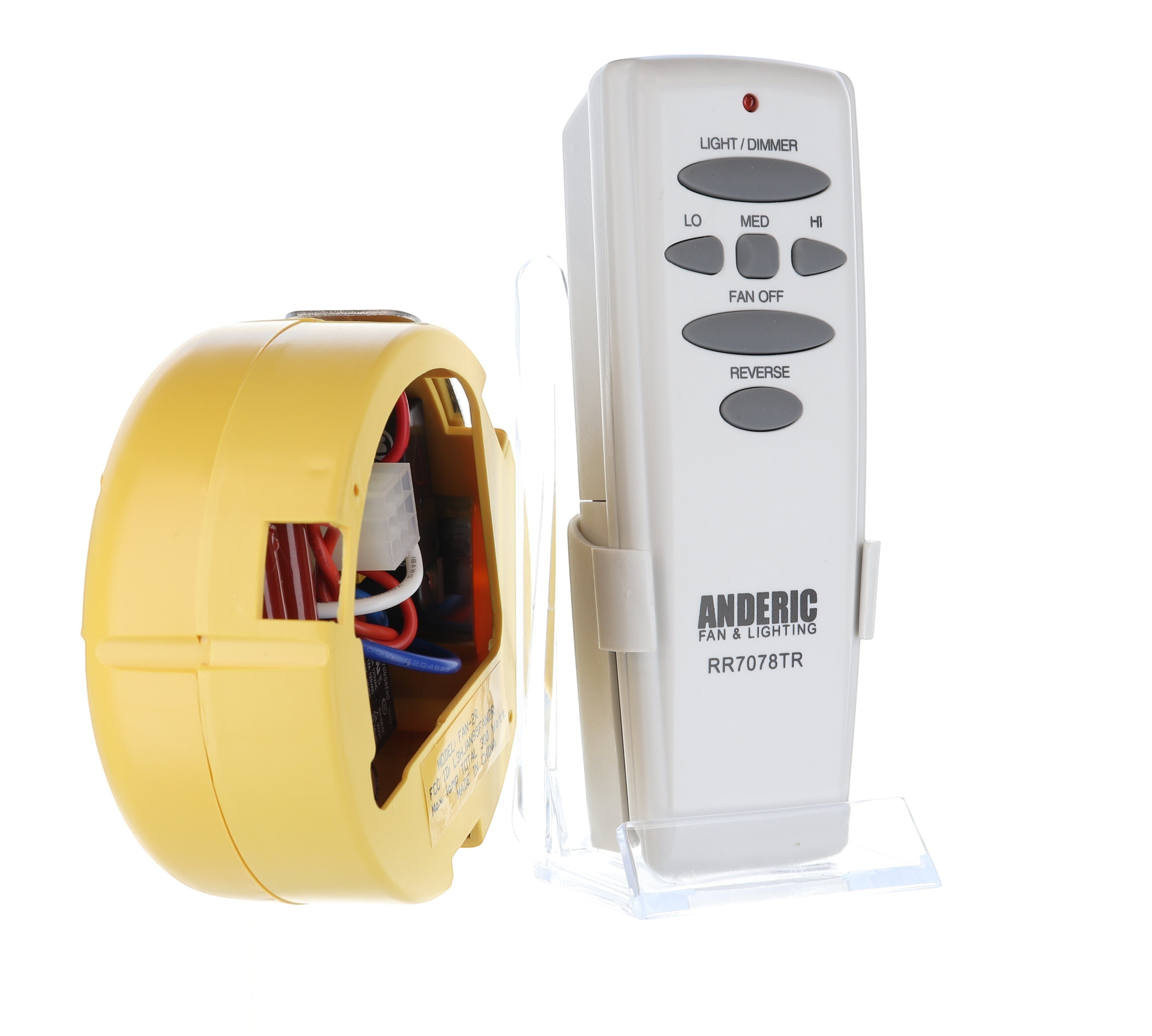

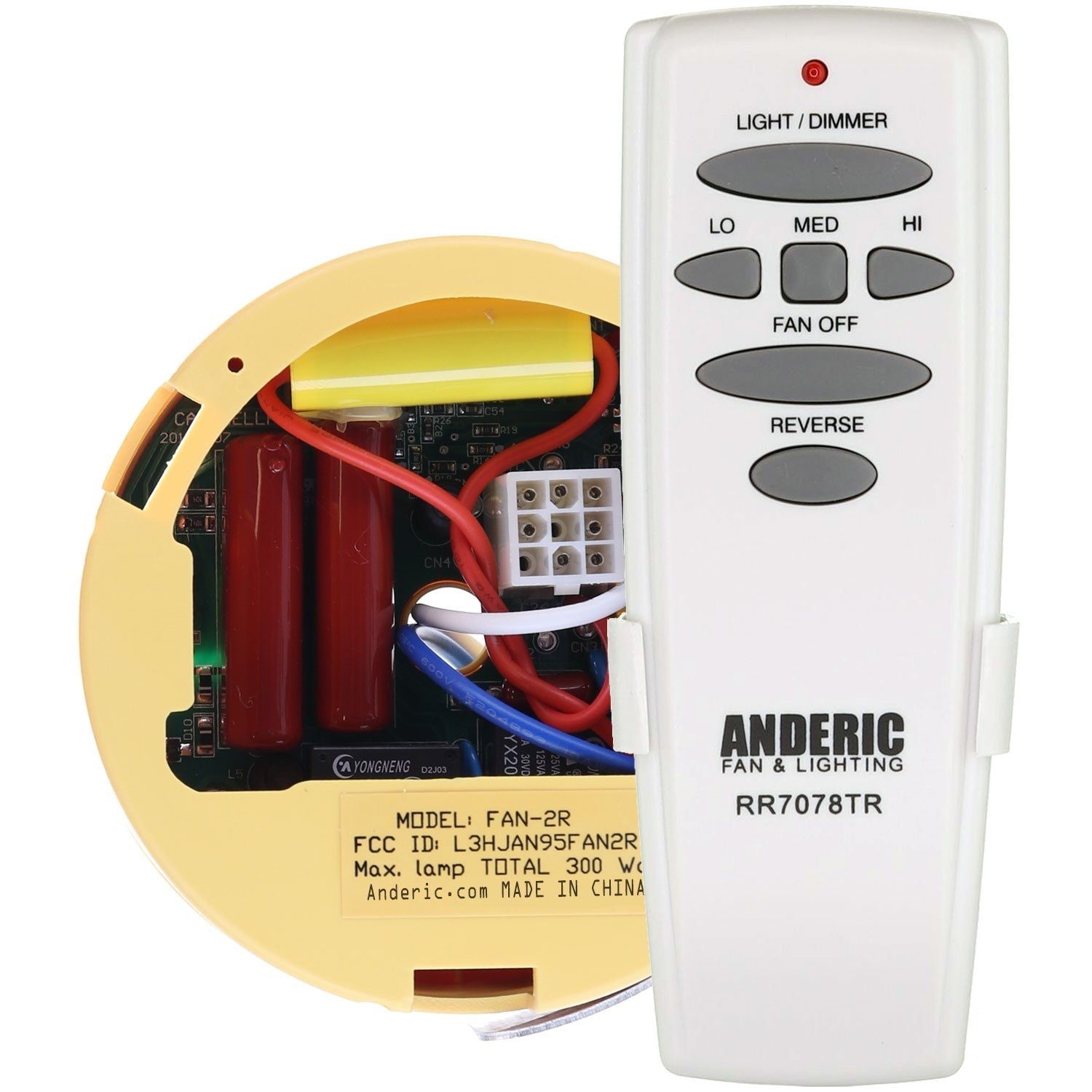

- Matched remote and receiver (304 MHz). Receiver with a plug-in 9-pin square connector and blue/white light-kit wires.

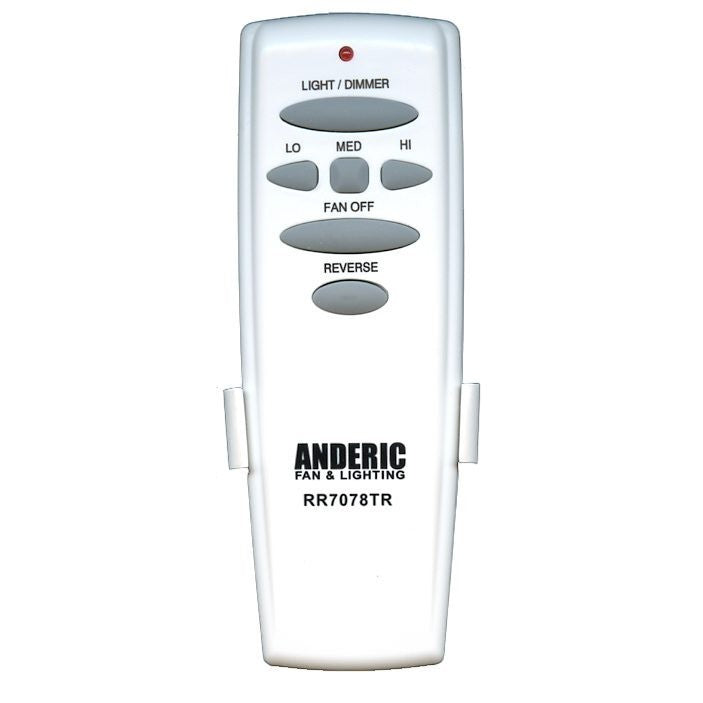

- Remote keys, light on/off (press and hold to dim), fan speeds LO, MED and HI, fan OFF and Reverse.
- Takes 1 9-Volt battery, not included.
Part/Model Number: 8511204 / 85112-04
Power Information: 1 9-Volt Required, Not Included
Frequency (if applicable): 304.0 MHz
Compatible with models (if applicable): 85112-04, 23529-300
Compatible Substitutes and Related Products
- 5 stars: 155 (87%)
- 4 stars: 20 (11%)
- 3 stars: 2 (1%)
- 2 stars: 1 (1%)
- 1 star: 1 (1%)
We thought we needed to replace the fan in our family room. The remote control was missing when we moved in less than a year ago.Hunter had discontinued the product. When we originally removed the control module I didn't notice the part number on it. And then last week I had time to look into the problem again and noticed the part number on the module and searched it on line. When the Anderic substitute came up we decided to give it a try. GLAD we did. I installed it today a direct replacement took less than hour start to finish.Works great and now; happy wife/ happy life.
The Pros: works very well and easy to install.
Cons: the original receiver used the switch housing as part of the heat sink according to what I've read, but this receiver does not make contact with the switch housing, time will tell.
The remote can not be placed over the wall power switch as the original Hunter remote did, and the mounting screw holes don't actually match anything I can see. I don't want to just leave it laying around, I can't find my glasses most of the time.
All in all, the remote and receiver are a good deal and it beats sending my fan back and getting a new one. I did that with my last fan and Hunter sent me a noisy fan and even though my original cane with a remote Hunter made me buy another one. At the time I did not know that most of the time the problem is the receiver. I have been looking at my old one and I noticed an area around a diode that looks like it got very warm.
Nice replacement - better than having to replace the whole fan
It was exactly what we needed. It works great! Shipping was pretty quick. We have no complaints. I would do business here again
Hi Sandra, thanks so much for the great review! We’re glad the remote kit was exactly what you needed and that it’s working great. We appreciate your kind words about the shipping and would be happy to serve you again!
It works great & it’s much cheaper then replacing the fan. Note; it’s not plug & play, meaning you may have to replace the light wires connectors as I did.
Nice upgrade from the original Hunter controller.
Original design did not have the light dimming option
As promised and arrived quickly! Thanks!
Hi Mark, we're so glad to hear your remote arrived quickly and met your expectations! Thanks for your support.
working good so far
Hi Joe, we're glad to hear the receiver is working well for you! Thanks for sharing your feedback.
Quick delivery and great phone support !!!
The product worked perfect perfectly, the company shipped it out and got it to me very quickly, they included instructions with pictures, I was skeptical, but it really worked out very well
Worked great on my old hunter fan.
Fantastic. Easy install. Great instructions and web support. Had the replacement installed and working in about 30 minutes.
Thank you for the great review! It's great to know you had your replacement up and running so quickly. We truly appreciate your support and are happy the remote is working well for you!
just received the unit. installed it and we now have both light and fan...
thanks for your video and product!
It was the perfect replacement for my 2003 beautiful Hunter fan!!! Easy no frill install.
Thank you for the great review! We’re so glad it was the perfect replacement for your 2003 Hunter fan and that the installation was quick and easy. Enjoy your fan, and thanks for choosing Anderic!
Original hunter fan receiver quit. The Fan2r kit was delivered on time was a breeze to install: took about 10 minutes and fit perfectly. Turned fan on low and it sounded a motor with a broken rod. Took fan apart again and removed 2 blades to discover the hunter receiver antenna retainer (a bakelite or plastic ring with the wire embedded) that was mounted between the blade mounts and the cup above the retaining cap for the receiver housing had failed leaving several large and small pieces of curved plastic or bakelite in the cup which were contacting the fan blade mounts causing the grinding racket. After removing the debris and reassembly, the fan works perfectly! Thanks Anderic!!
I purchased two of these receivers and a single remote for my family room fans. The room is large and we put in two very nice Hunters. After a few years one of the fans would only go into forward, no reverse.
These came in quick, fit perfectly and are working great.
Thank you for sharing your experience! We’re glad to hear the receivers arrived quickly, fit perfectly, and solved the issue with your fans. It’s great to know everything is working smoothly again. If you ever need assistance or have questions in the future, we’re always here to help!
Device fit and worked well. Two issues. 1) Connectors for white and black wire were not correct. Had to strip off insulation and connect with wire nuts.
2) Dimming function for light does not work. Fixture has LED bulbs.
Anderic FAN2R for Hampton Bay Ceiling Fan Receiver - FAN-2R
Got here on time, installation was quick and easy and plug and play was just as expected. Excellent product, customer service and performance was all high grade !
good
Knowledgeable staff. Great service.
It was a little smaller than the original but the very soft aluminum brackets allow for easy reshaping to create a snug fit.
I had trouble taking the old “bullet” connectors apart as they seem to lock themselves in together.
I followed your recommendations on what to buy, bought it, installed it, and everything worked fine first time. Very reasonably priced, and lived up to my highest expectations. Outstanding. Will definitely recommend to others.
Easy to install
I wish it had had instructions
on how to disconnect the connectors.
Fantastic Product, at an affordable price!!! Thank You, Dan's Electronics & you're company Anderic. If it wasn't for you, many folks' older, no longer supported products would be junk. Such as my two quality Hunter fans made back in the day. When my Hunter Grand Isle quit working, I discovered it had voltage to the receiver but not coming out. So I looked up Hunter part no. 85112-02 only to find that all old inventory has been exhausted. I also have a Hunter Rosemount with the same internals. So luckily, I discovered Dan's with their Anderic line, which makes new replacements. The receiver & corresponding remote work great. It was plug & play, except the wires going to the lights. Unless you have the same connectors on your light wires, most will have to cut the connectors off & just wire nut the ends together. Other than that, it works even better than the original, due to it remembering the settings when powered off at the switch, not defaulting to light on, fan off, or fan clockwise when signaled, every time the wall switch is turned off/on. Now, it remembers my last settings & that's what comes on when turning the switch back on. No more lights on when the power goes out & comes back on too! Also doesn't have interference with LED bulbs, which I had to run at least one filament bulb w/LEDs before to stop the flicker. Nice to have those bugs worked out. A couple years back I purchased a few of the Hunter 85095-01 remotes for my fans before that inventory ran out. Looks like I'll get the chance to sell a couple on ebay now. Don't need them with this new receiver. I feel better knowing that if anything happens to my Rosemount next, replacements are there. If any of the new parts break, receiver or remote, Anderic is still producing them affordably. So no worries going forward. Very happy with Dan's Electronics & Anderic line.
This customer rated this item 5 out of 5 stars (left no comment).
Great product. Perfect fit.
