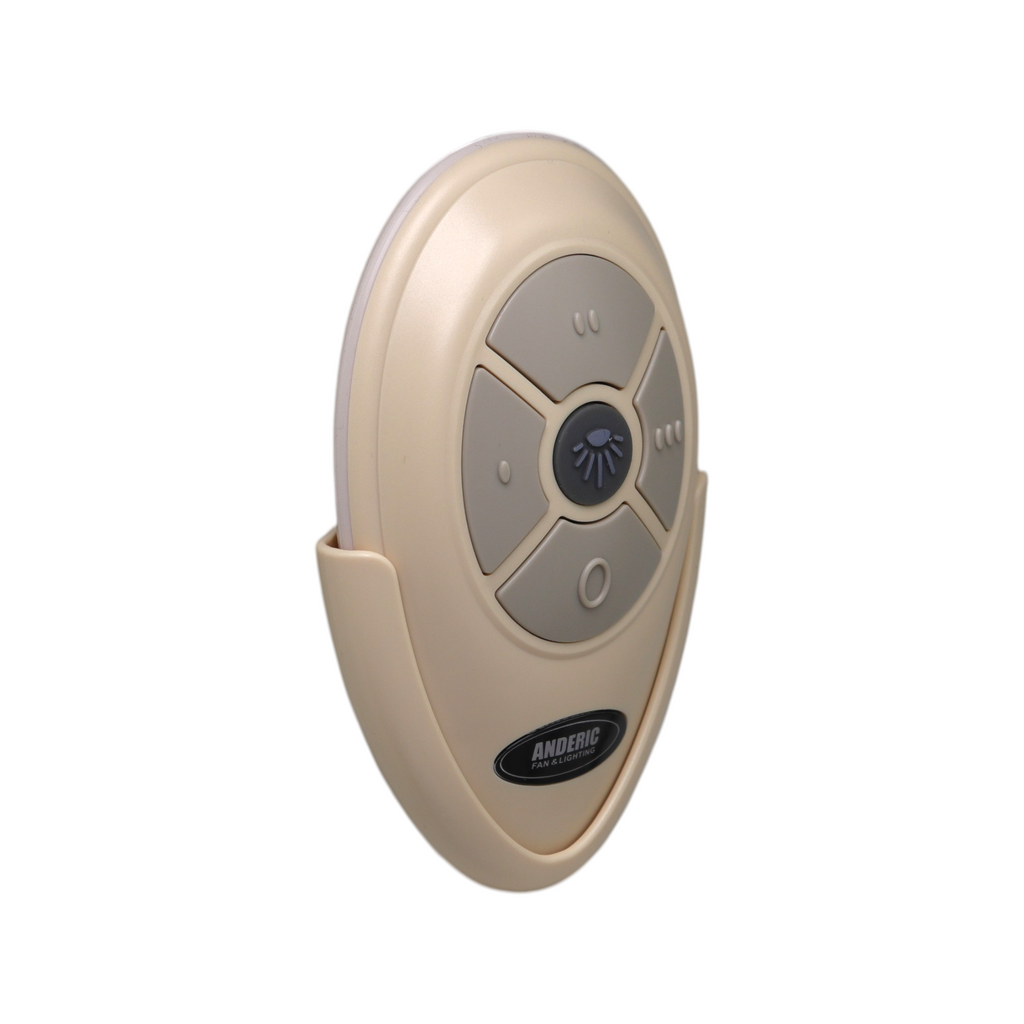

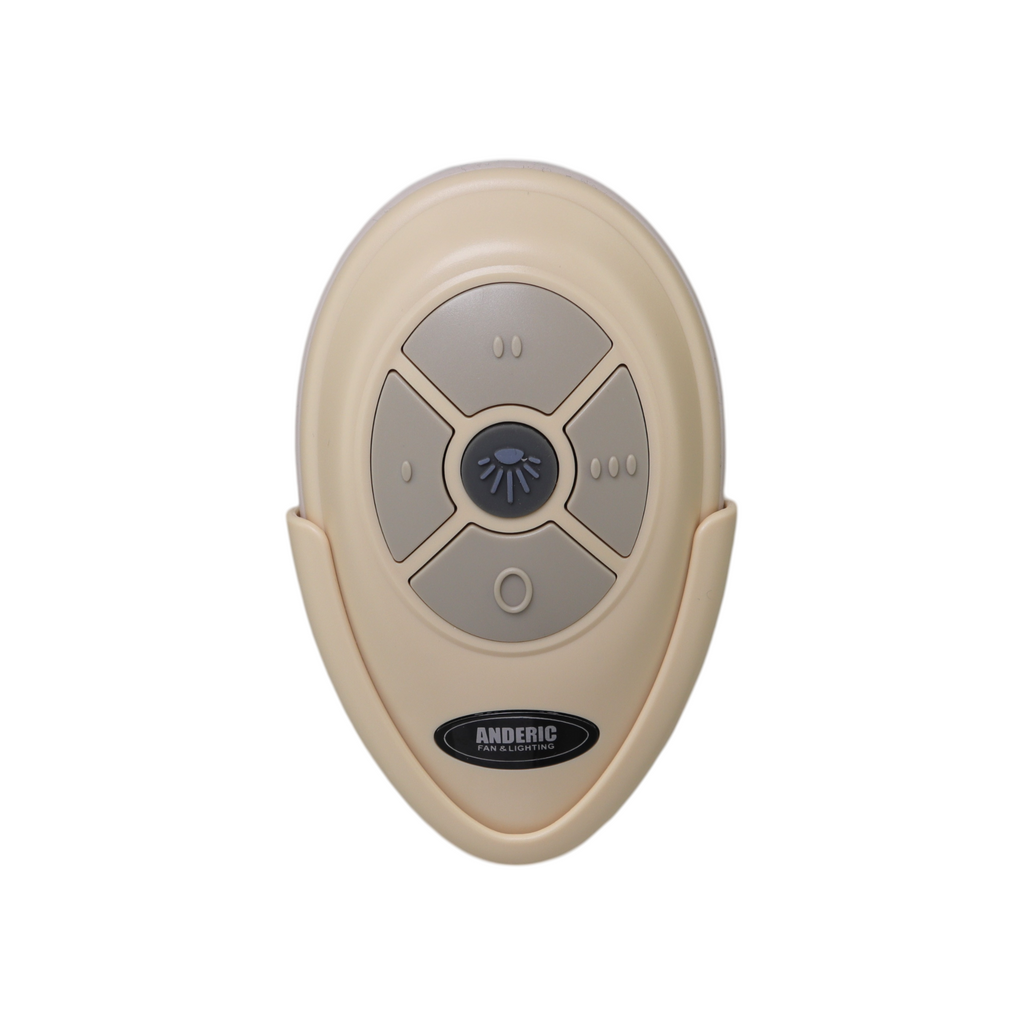

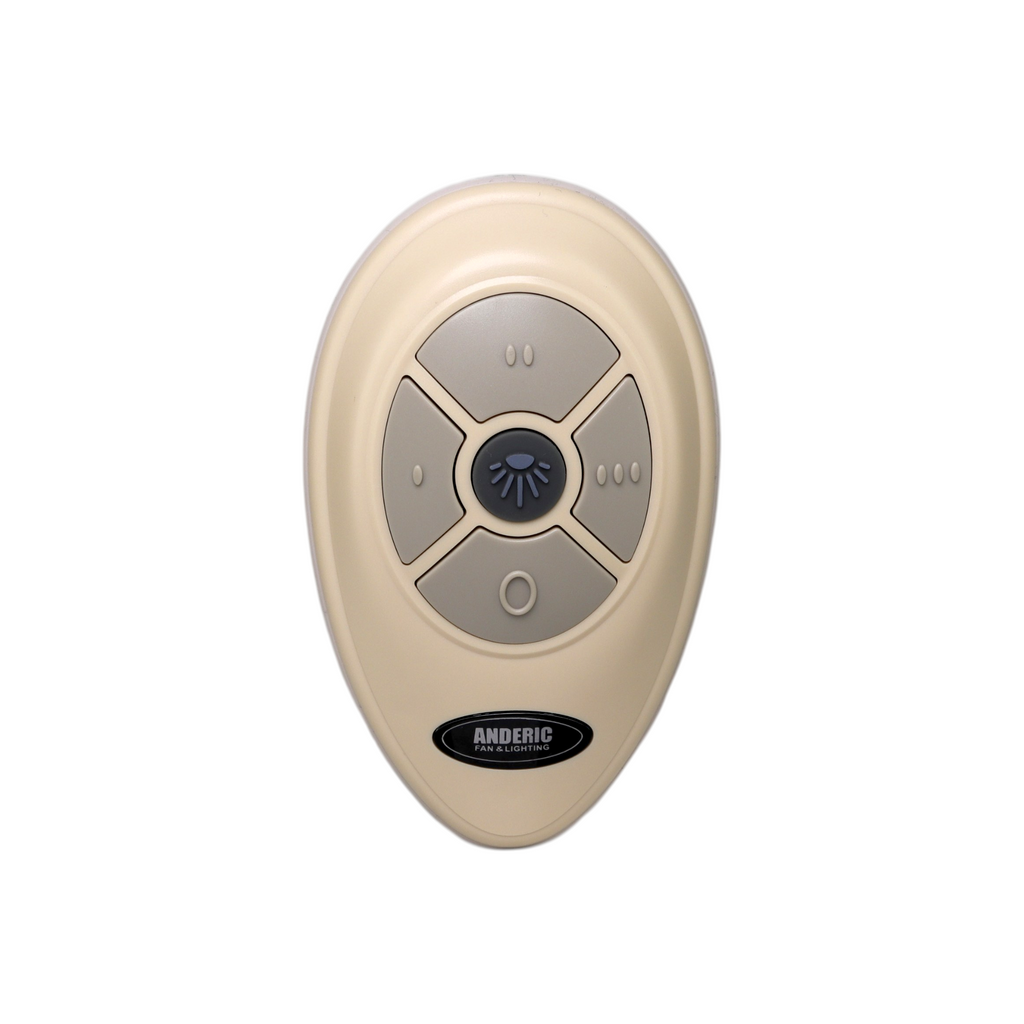

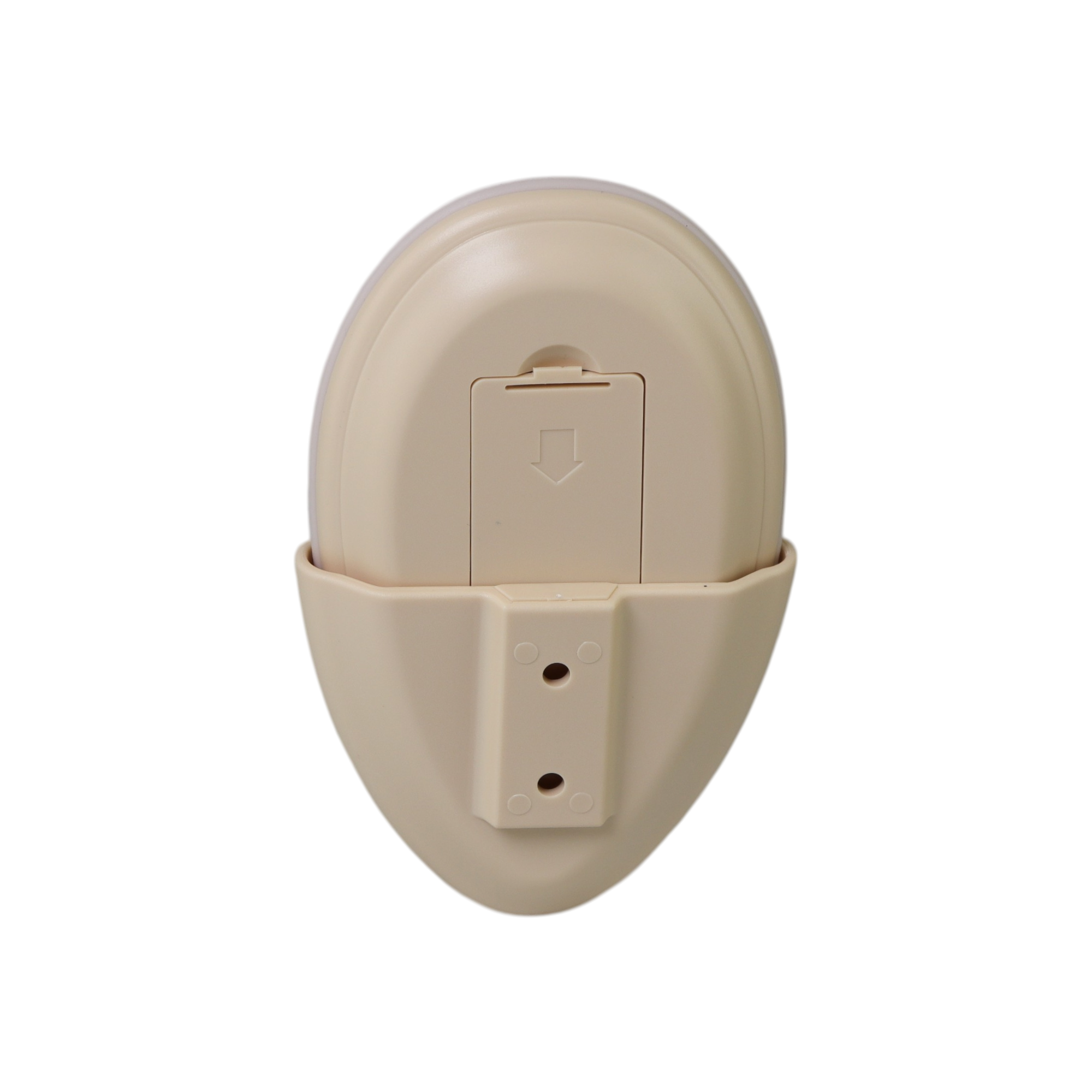

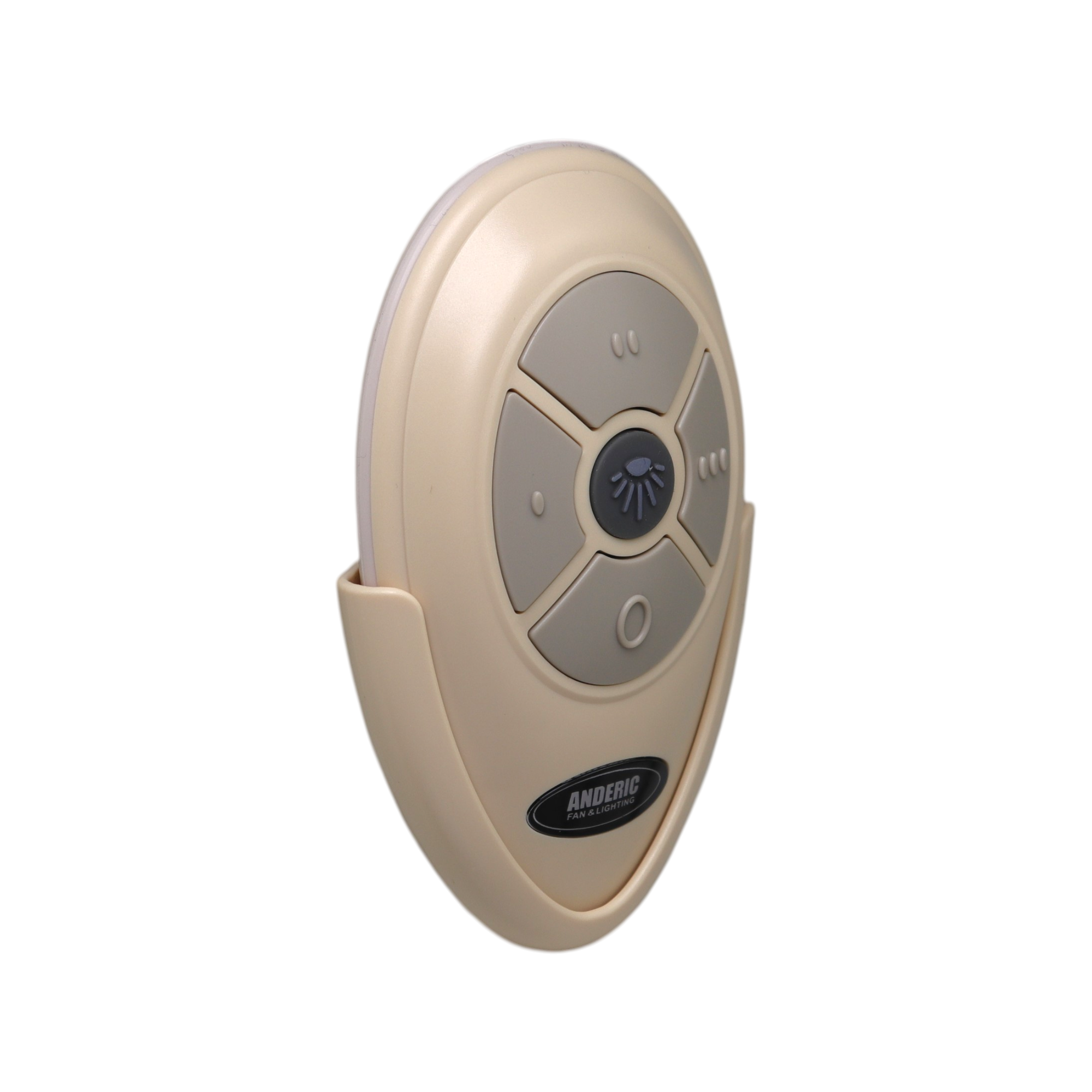

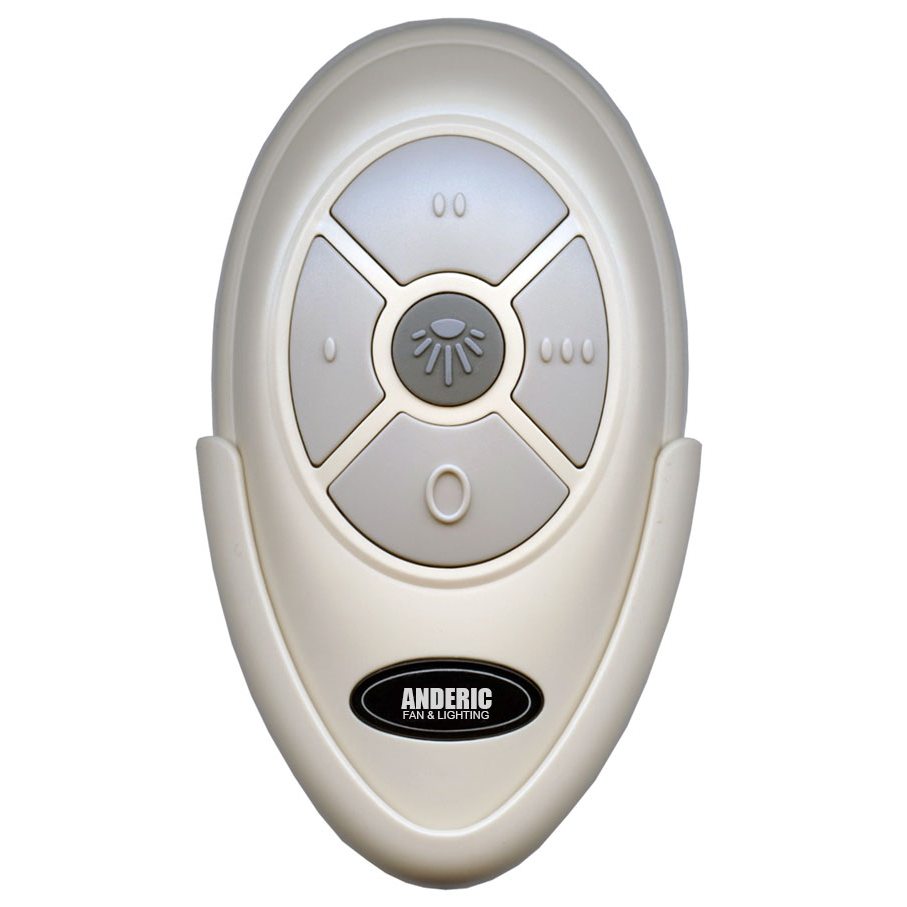

Anderic FAN35T for Harbor Breeze Ceiling Fan Remote Control FAN-35T

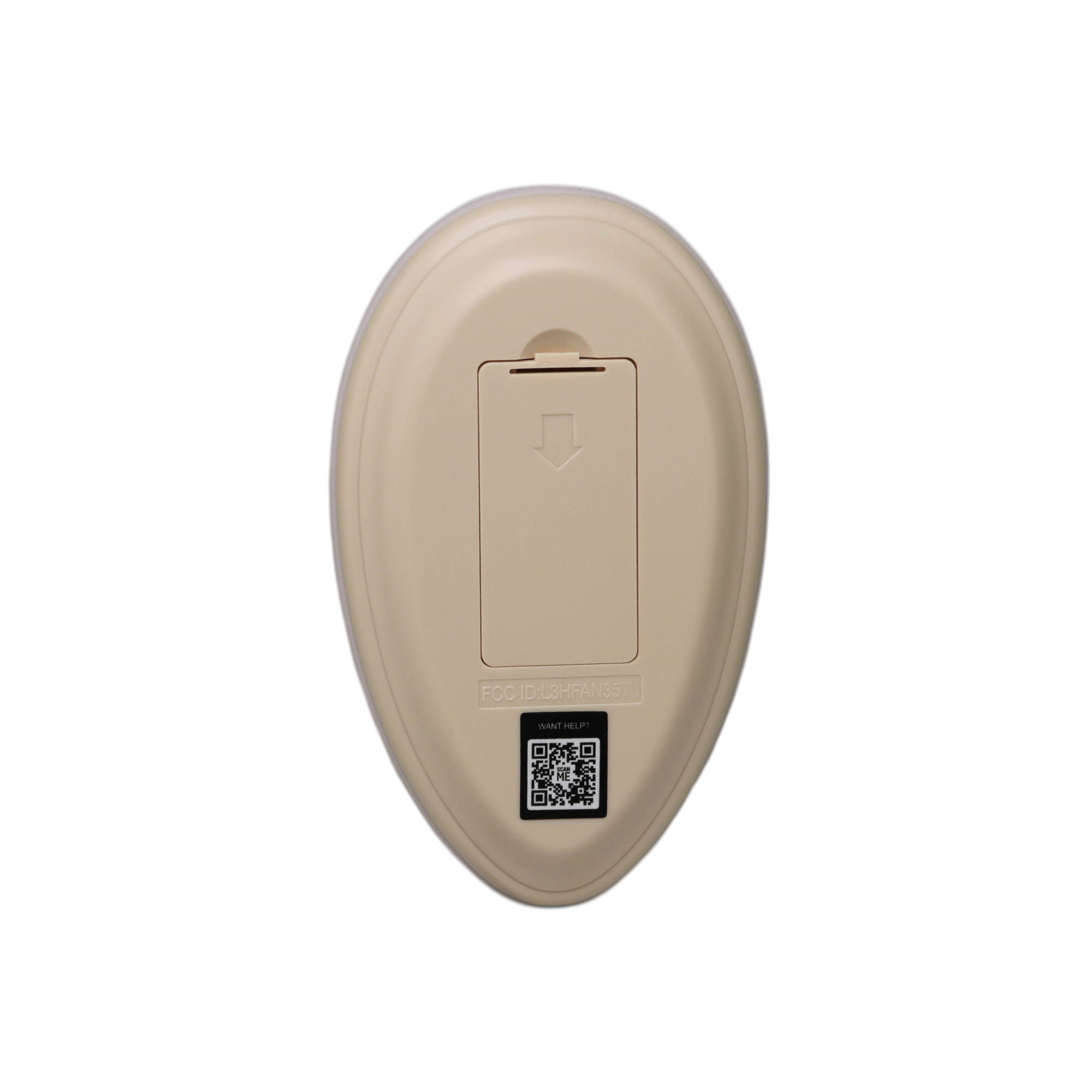

The Anderic FAN35T remote will replace your original Harbor Breeze FAN35T original equipment remote. This remote has a dip-switch panel inside the battery compartment for pairing with your ceiling fan receiver. It can also be learned via the learn button (only for the FAN30R receiver).

Pairing notes: Pairing is done by arranging the dip switches inside the battery compartment to match the receiver's. The learning button is not used unless you pair the FAN35T remote with the FAN30R receiver. Pairing via the learn button will not work for any receiver requiring pressing the learn key. If your receiver inside the fan does have dip switches, the FAN35T for Harbor Breeze will work simply by aligning the dip switches to match (no need to press the learn button to pair). If your receiver has dip-switches, and your original 35T remote does not have dip-switches but instead only a Learn button, this remote will not work; you must purchase a new kit as we do not have the remote for you available (we recommend the RR7079TKIT Universal ceiling fan kit).
Color: Ivory

ASSOCIATED NUMBERS:

• FCC ID: L3HFAN35T for Harbor Breeze
• 303.9MHz Frequency
• REQUIRES BATTERY TYPE: 23A12V (NOT INCLUDED; YOU MAY ADD THE BATTERY TO THE CART FROM THE CART PAGE).

Programming instructions:
If the fan has a receiver with four dip-switches, do the following steps to pair the remote:
1. Align switches inside the battery compartment of the remote to match the dip switches on the receiver (located in the fan)
You're done.
-----
WARNING: If the receiver in the fan does NOT have dip-switches, this remote will not work (unless your receiver model is "FAN30R").
Below instructions is for Learning with FAN30R receiver pairing:
A. Align "DIP" switches on any pattern on FAN35T for the Harbor Breeze remote.
B. Turn on the Ceiling Fan main power switch, and within 30 seconds after the Ceiling Fan power is on,
C. Then push the "Learn" key for 3 to 5 seconds on FAN35T for Harbor Breeze.
D. Then the Lights on the Ceiling Fan will blink two times (or the fan speed turns to MEDIUM speed). It means your setting is good. Test the rest of the buttons to make sure they work.
-----
If the above doesn't work, try pressing and holding the OFF and LIGHT keys simultaneously for up to 10 seconds; the lights should blink to confirm pairing.

Note: Again, the FAN35T remote only works via the learning method if your fan comes with the FAN30R receivers installed. HOW TO TELL: If you have the original remote, which only has the learning key and no dip switches, then that is an excellent way to tell that this FAN35T remote will not be compatible with your fan.

If you have a second fan with the same remote:
A. Align DIP switches on FAN35T for Harbor Breeze to a different pattern than the first fan.
B. C. D. steps are the same as above.
