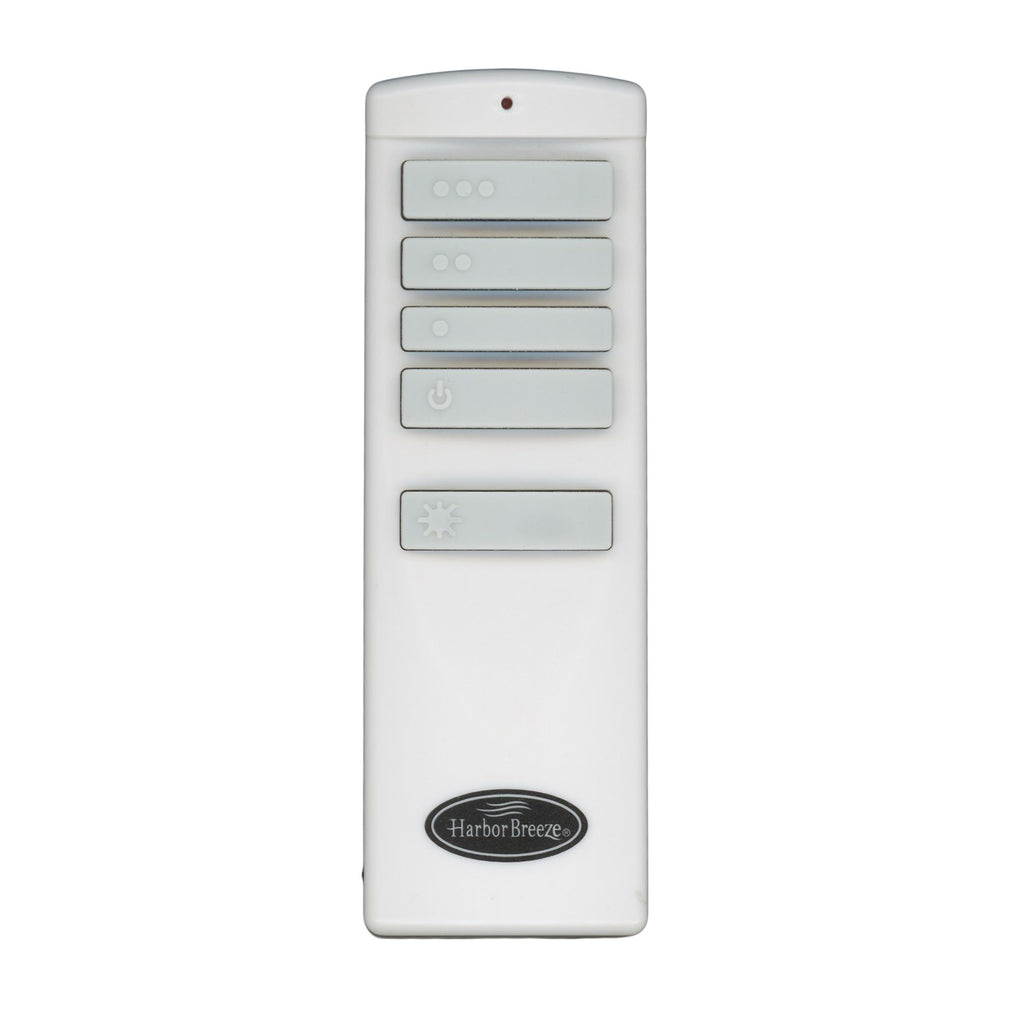

The Harbor Breeze A25TX005R remote control, designed for the Xerxes 62 IN fan, includes four gray buttons to manage fan speed, power, and light functions, along with a top LED indicator.
Roll over image to zoom in Click on image to zoom

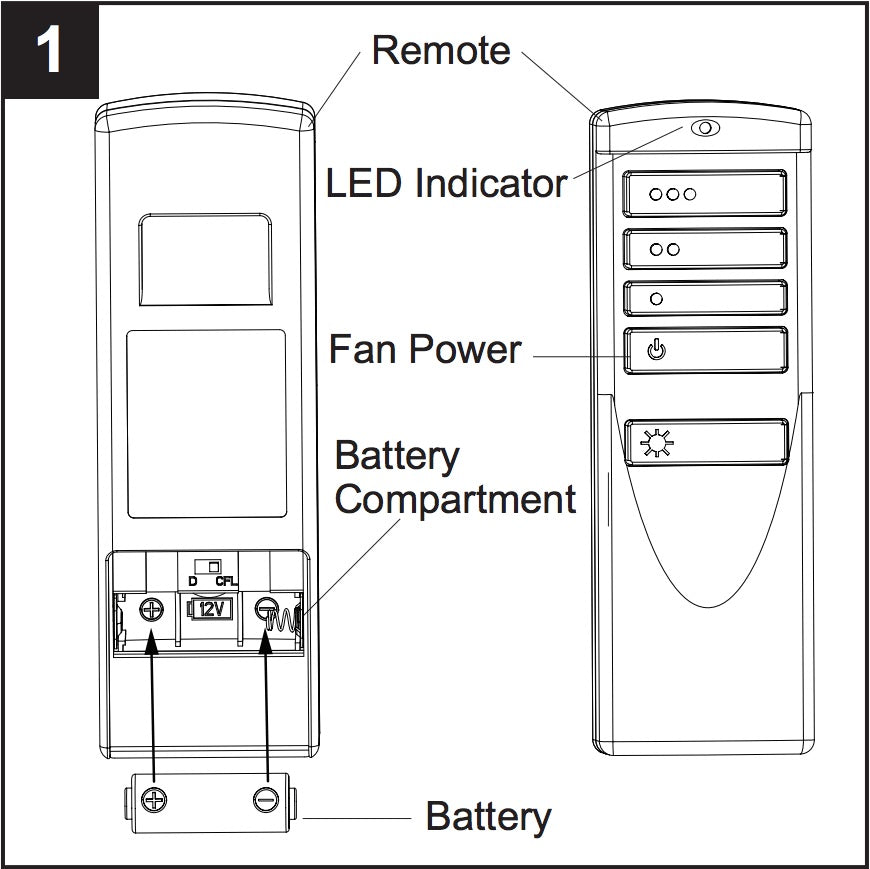

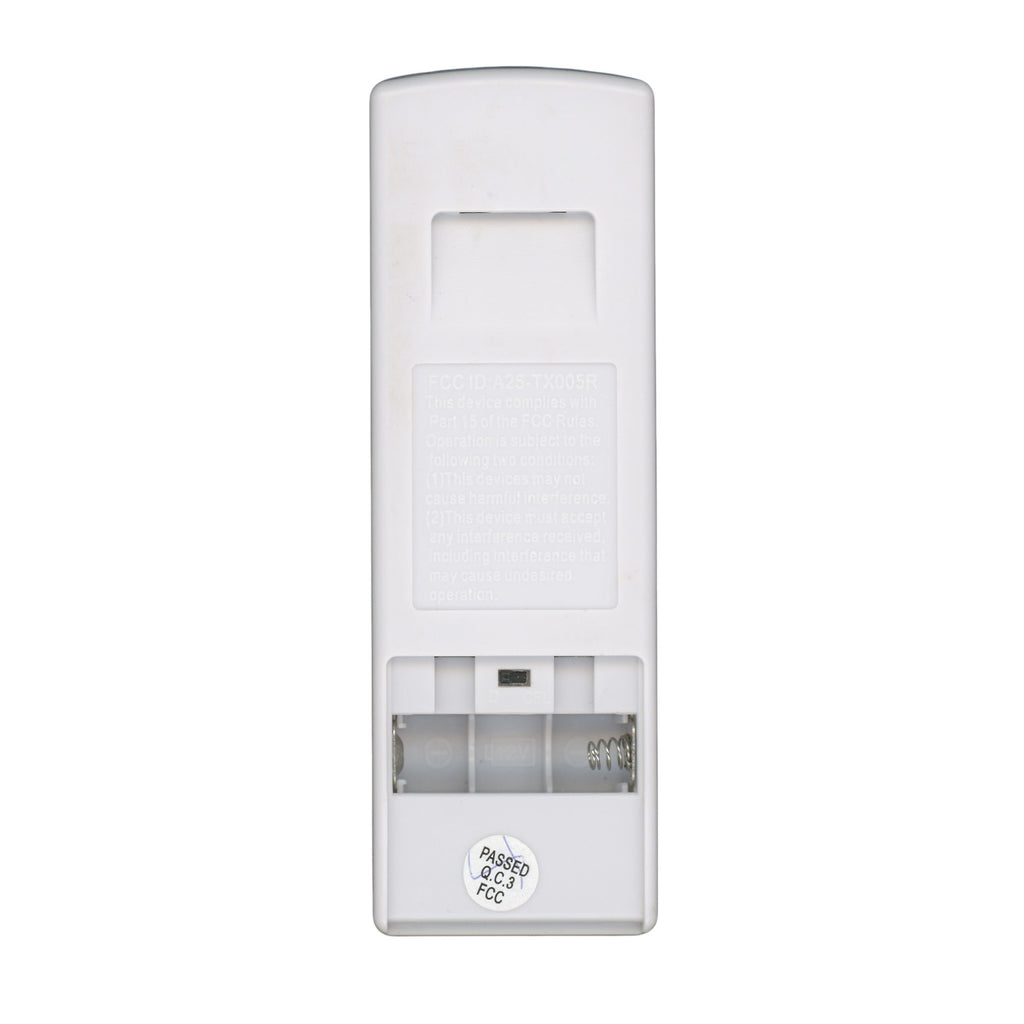

The Harbor Breeze A25TX005R remote control, designed for the Xerxes 62 IN fan, includes four gray buttons to manage fan speed, power, and light functions, along with a top LED indicator.Back view of a white Harbor Breeze A25TX005R Ceiling Fan Remote Control with an open battery compartment, showing two metal contacts. A label with text and an FCC approval sticker at the bottom ensure compliance and quality.Diagram of the Harbor Breeze A25TX005R Ceiling Fan Remote Control, A25-TX005R: labeled parts include LED indicator, fan power button, and a battery compartment with a 12V battery.The Anderic A25-TX001-R1 / A25-TX005-R for Harbor Breeze Ceiling Fan Remote Control (model RRTX001R) features five gray buttons with symbols and is an ideal replacement. The "ANDERIC" brand and model name are prominently displayed at the bottom.

Harbor Breeze A25TX005R Ceiling Fan Remote Control - A25-TX005R

Save 16%
Option: Substitute
Price:
$26.35 $31.39
Stock:
In stock (1935 units)


More payment options

Description

Associated Model numbers: 4L000007030, 0599849-O

Frequency: 315.0 mhz

Programming:
Turn off the main power, then turn it back on. Within 30 seconds, press and hold the high and low speed buttons on the remote at the same time for 5 seconds. The LED indicator will flash 3 times, signaling a successful synchronization. Once complete, the fan will start on the low speed with the light (if applicable) off.
Originally supplied with models: 0599656 CROSSWINDS II, 0599848 CROSSWINDS II, 0599849 CROSSWINDS II, 40305 PAWTUCKET, 40821 CROSSWINDS II, 40822 CROSSWINDS II, 40823 CROSSWINDS II, 40958 PAWTUCKET, 40959 PAWTUCKET, 50608 Xerxes 62 IN, 50609 Xerxes 62 IN

Specifications

Product help/documentation (if applicable):

Supplied with models (if applicable): 0599656 CROSSWINDS II, 0599848 CROSSWINDS II, 0599849 CROSSWINDS II, 40305 PAWTUCKET, 40821 CROSSWINDS II, 40822 CROSSWINDS II, 40823 CROSSWINDS II, 40958 PAWTUCKET, 40959 PAWTUCKET, 50608 Xerxes 62 IN, 50609 Xerxes 62 IN

Compatible with models (if applicable): 40942 52 in MERRIMACK, SEAHOLME 42225

Part Number: A25TX005R

Model Number: A25TX005R

Battery Required (not included): 23a 12V

Power Source: Battery-powered

Package Size (Inches): 6.9 in / 1.9 in / 0.9 in

FCC ID (if applicable): A25-TX005R

Frequency (if applicable): 315.00.0RF/Bluetooth

When programming to the Anderic RRU401 4-Device Universal Remote Control, use code:
