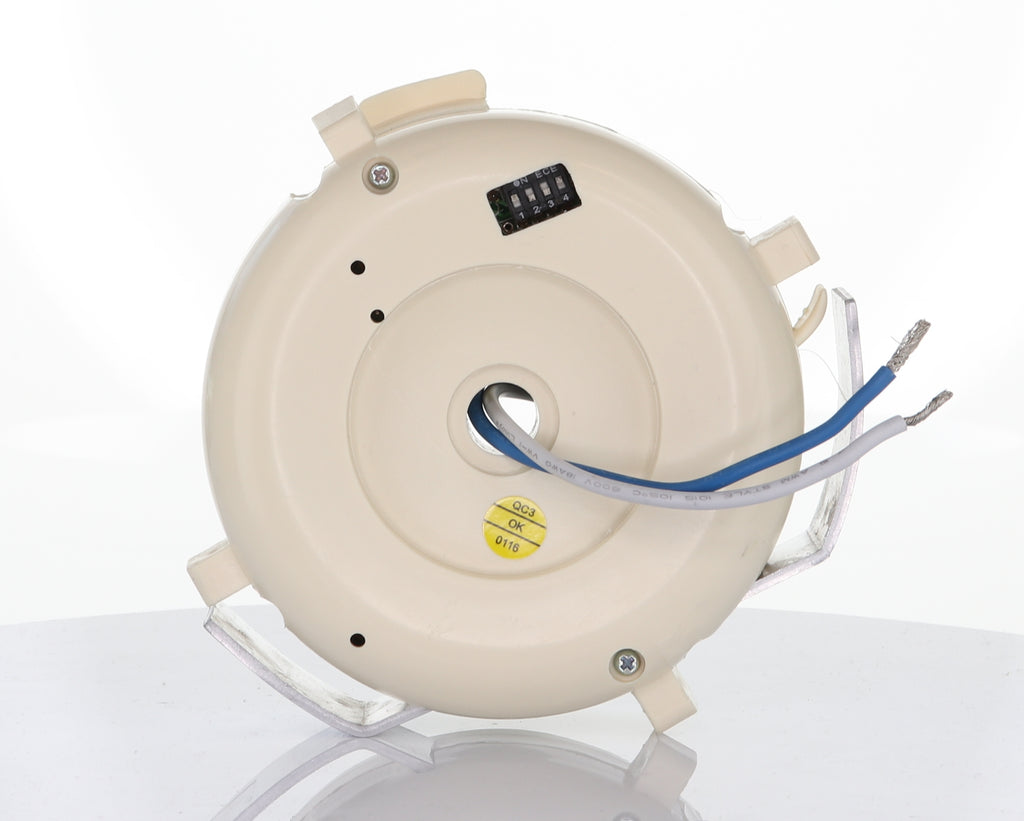

On a glossy white surface, the Anderic UC7051G Ceiling Fan Receiver features an exposed blue and white wire with mounting brackets, resembling a ceiling fan component. It's perfect for Hampton Bay designs.

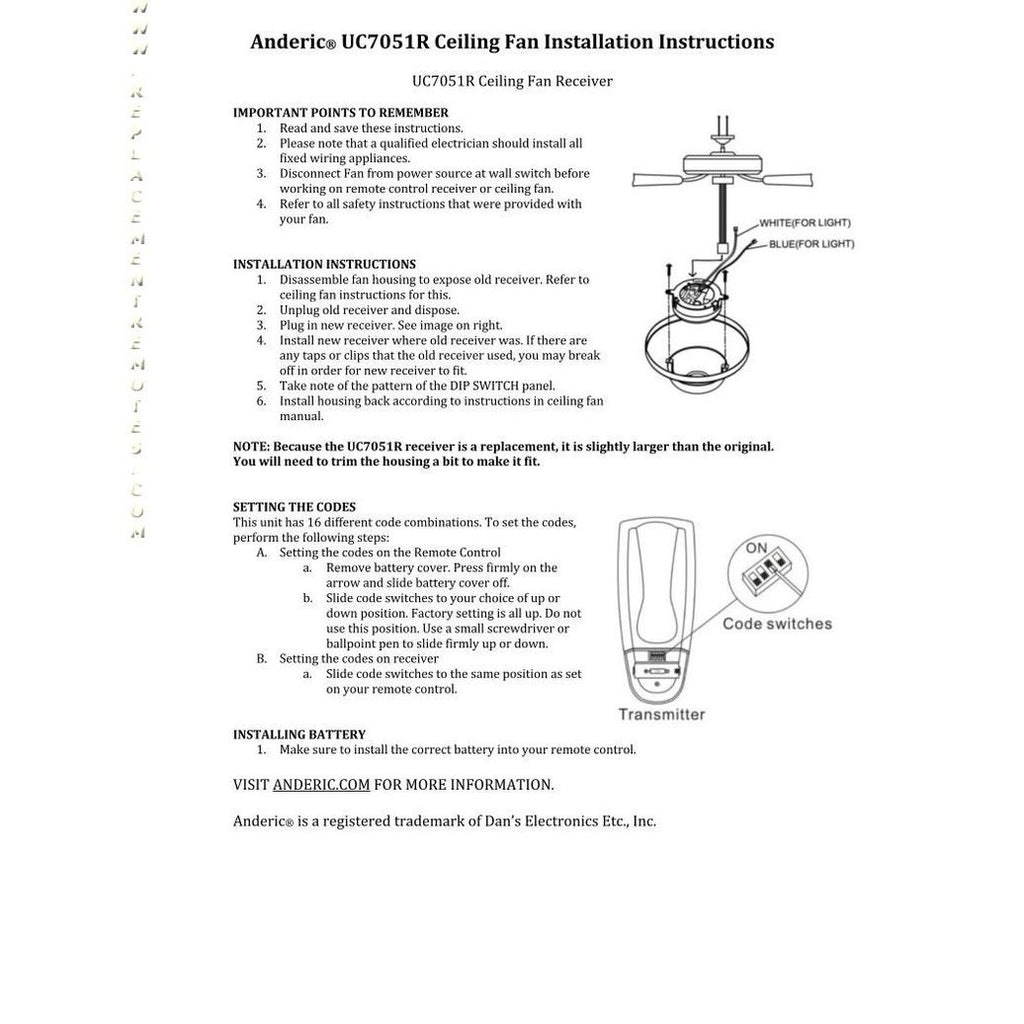

The page offers instructions and a diagram for installing the Anderic UC7051G ceiling fan receiver, with sections on crucial points, installation, code setting, and battery setup. It is compatible with Hampton Bay models for an effortless installation process.

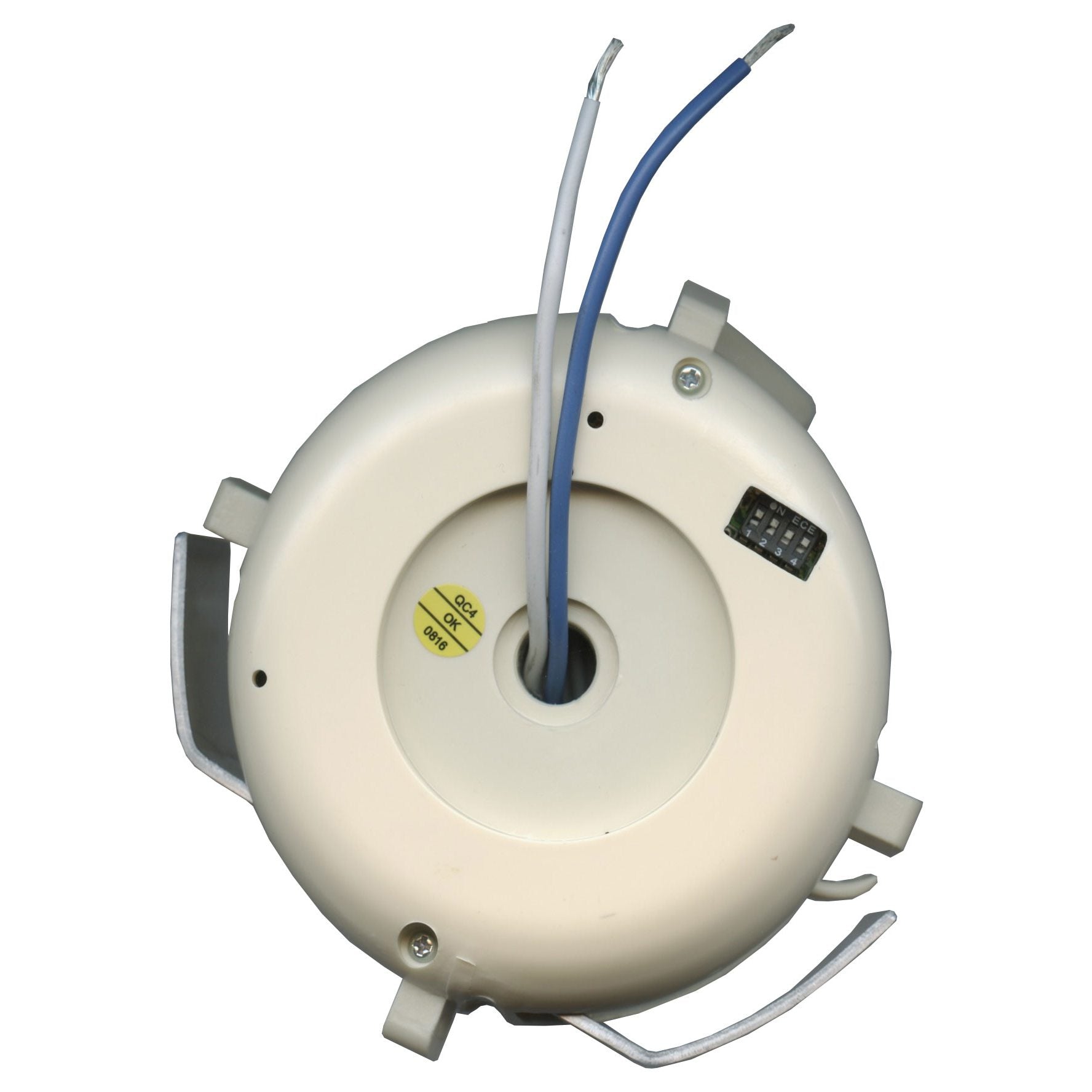

The Anderic UC7051G is a circular electronic ceiling fan receiver for Hampton Bay with a white casing and three exposed wires (blue, white, black) emerging from its center. The side clips suggest it's part of a fixture or sensor component.

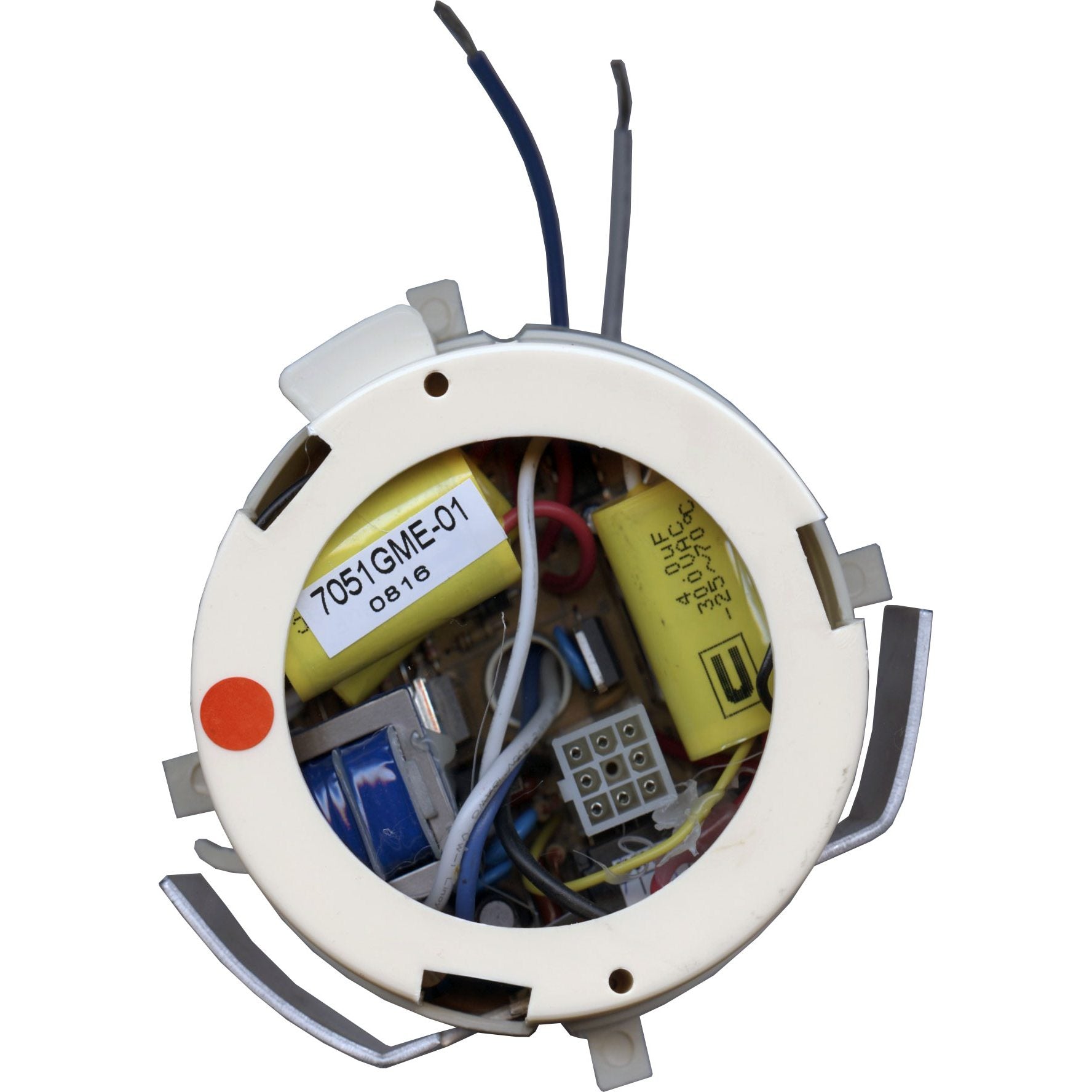

Close-up of the Anderic UC7051G ceiling fan receiver for Hampton Bay, showing wires and capacitors inside a round, white casing.

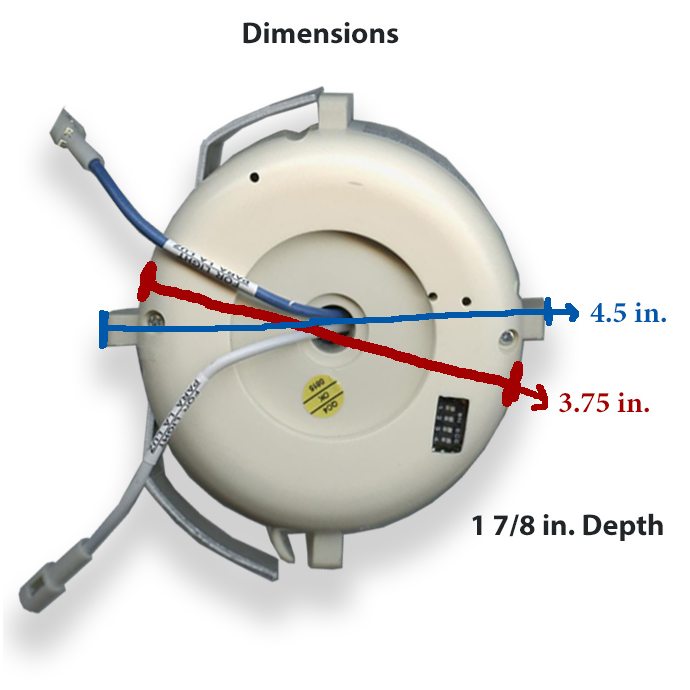

The Anderic UC7051G receiver for Hampton Bay fans includes a round component with blue and red wires, measuring 4.5 inches in diameter, 3.75 inches in the other direction, and 1⅞ inches deep, ensuring seamless integration into any setup.

Roll over image to zoom in Click on image to zoom

Anderic UC7051G Up/Down and Reverse Replacement Ceiling Fan Receiver for Hampton Bay

Name: Anderic UC7051G Up/Down and Reverse Replacement Ceiling Fan Receiver for Hampton Bay
Brand: Anderic
SKU: 79484-NEW
Price: 49.95 USD
Availability: InStock

Anderic

Price:

$49.95

Stock:

In stock (154 units)

Quantity:

Share this product

Anderic UC7051G Ceiling Fan Receiver – Replacement for Hampton Bay & Harbor Breeze

Compatible Fans:
Designed for Hampton Bay and Harbor Breeze ceiling fans with Reverse and Up/Down light functions.

Functions:

• Reverse fan direction

• Up light control

• Down light control with dimming

• Fan speed control (multiple speeds)

Dimensions:

• Diameter: 3.75 inches, extends to 4.5 inches at the widest points. If the receiver is too large, the metal or plastic tabs may need to be removed—ensure the receiver is functioning properly before making any modifications.

Important:

• Replacement use only. It must replace an existing UC7051G or UC7051R receiver. It's not compatible with fans that don't have a similar receiver.

• Wiring: Light wires (blue/white) may require splicing with wire nuts if they don’t match your fan’s wiring.

Product help/documentation (if applicable):

Pairing Guide

Supplied with models (if applicable):

Compatible with models (if applicable):

Part Number: UC7051G

Model Number: UC7051G Up/Down and Reverse Replacement Ceiling Fan Receiver for Hampton Bay

Battery Required (not included):

Package Size (Inches): 4 in / 4 in / 3 in

FCC ID (if applicable):

Frequency (if applicable):

great replacement product, but more importantly. amazing customer support...

I can’t tell if it works because the Dan’s rep I spoke to didn’t mention that this unit would require a Molex adapter in order to exactly replace my old unit. It’s another ten bucks and several shipment days before I can finalize this installation.

This customer rated this item 5 out of 5 stars (left no comment).

Works as prescribed,but fan appears to slower ? But I guess slower is better than no fan at all in this heat

This customer rated this item 5 out of 5 stars (left no comment).
